Add-ons

Add-ons

Table of Contents:

In this section you can configure Leon integrations with the following software, amongst others:

• AeroCRS - flight reservation and operation software

• Airport Charges - airport charges library

• AMOS - MRO software

• APG - flight planning & management software

• ARINCDirect - flight planning software

• Aviapages - business aviation marketplace

• Avinode - charter sales management system

• CAMP - maintenance software

• Centrik - training and endorsements management

• DeliSky - catering services

• DocuSign - signing & sending documents

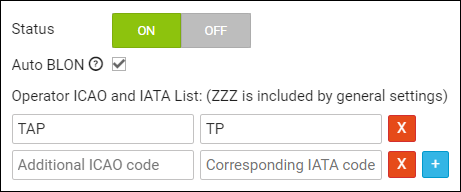

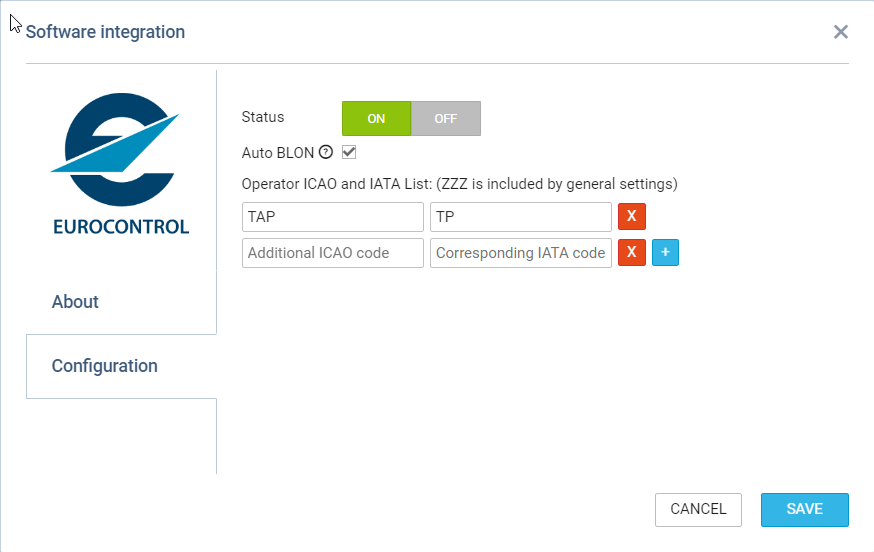

• Eurocontrol - air traffic management

• EuroFPL - software to flight planning and navigation

• ForeFlight - flight planning software

• GetJet - charter sales management system

• JETEX - trip support software

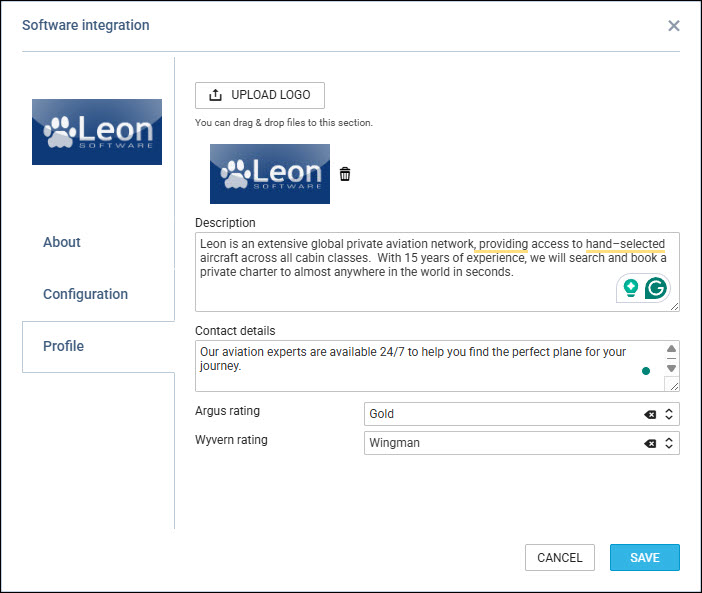

• Marketplaces - charter sales management websites

• MARS (My Aircraft Reporting System) - supports aircraft owners by providing them with modern tools for monitoring, cost management and reporting.

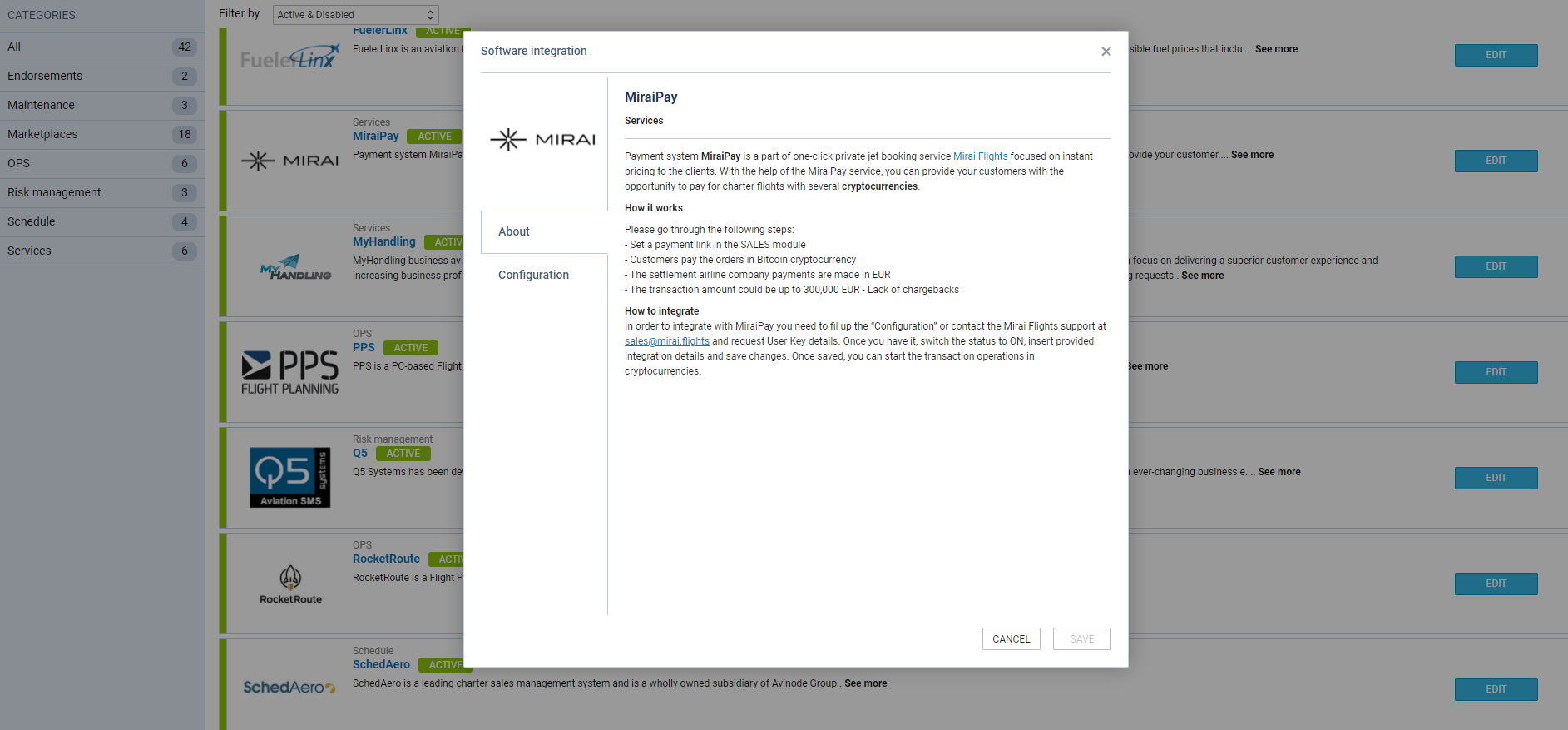

• MIRAI - cryptocurrencies payment system.

• Prodefis

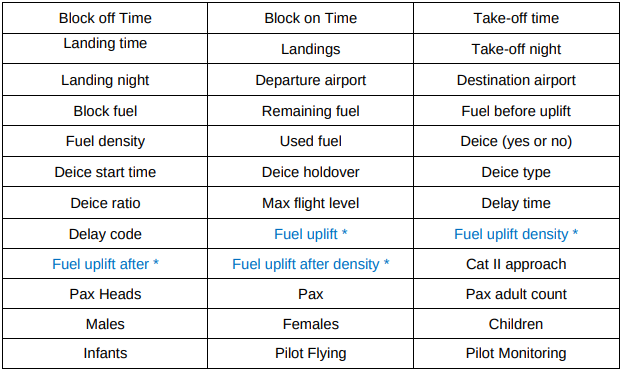

• MRX System - fully-integrated digital platform enabling aviation professionals to access real-time data and take control over their fleet maintenance and operations management.

• MyHandling - software to service Handling Requests

• MySky - spend management that bridges the gap between financial and operational data

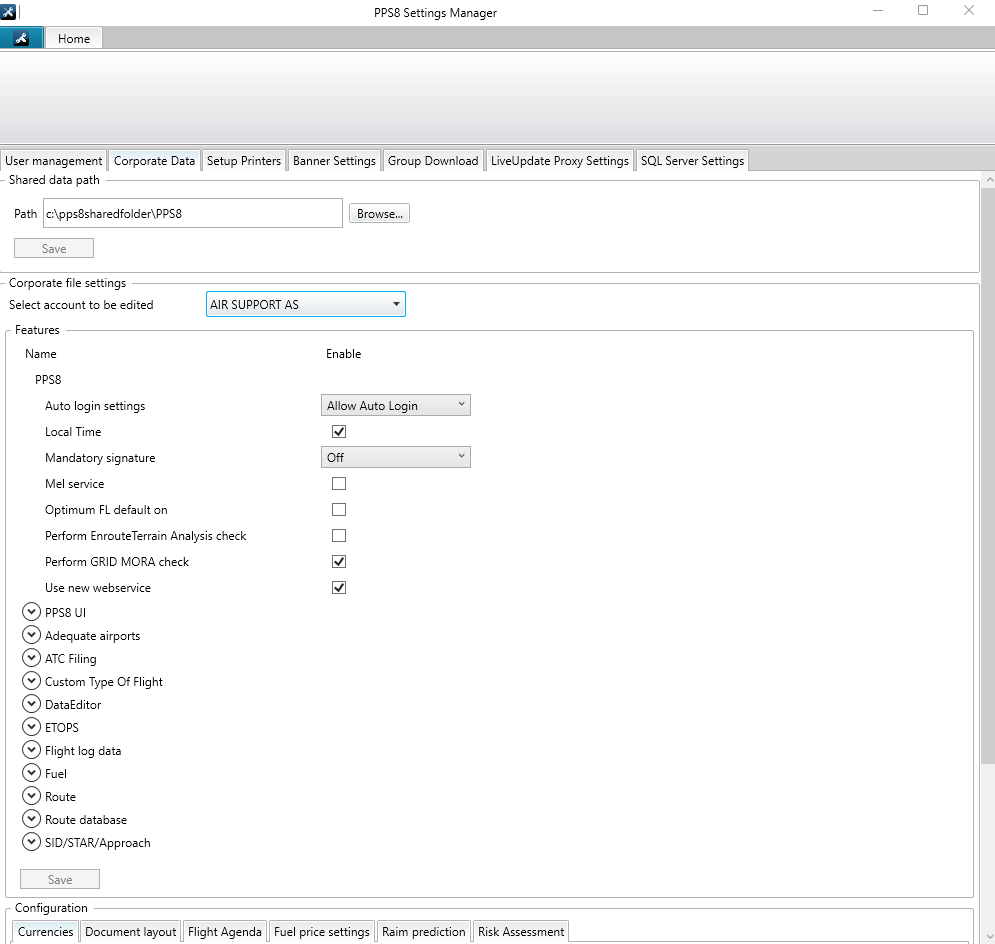

• PPS - flight planning software

• Q5 Systems - Security Management software

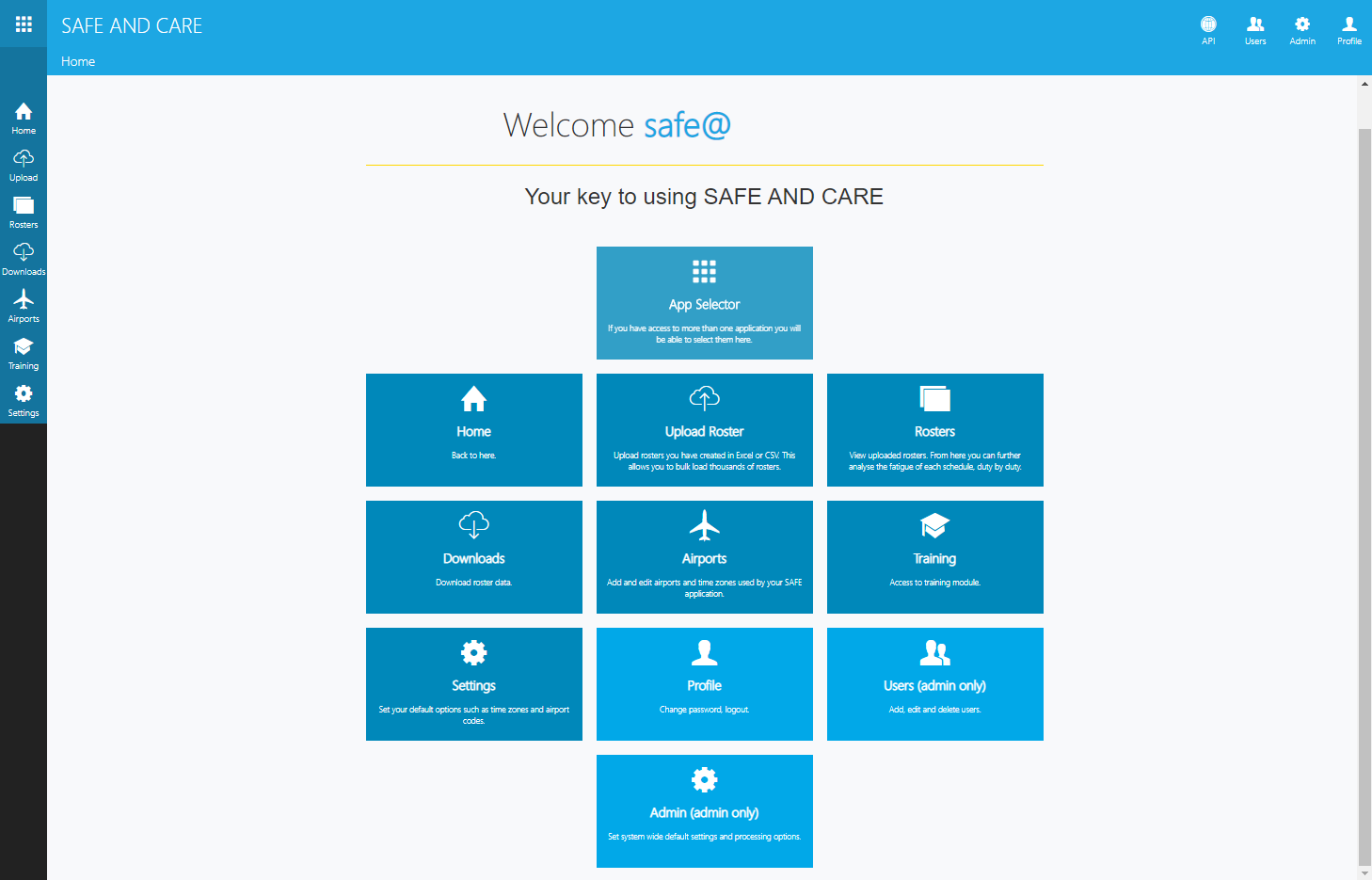

• SAFE - crew fatigue management software

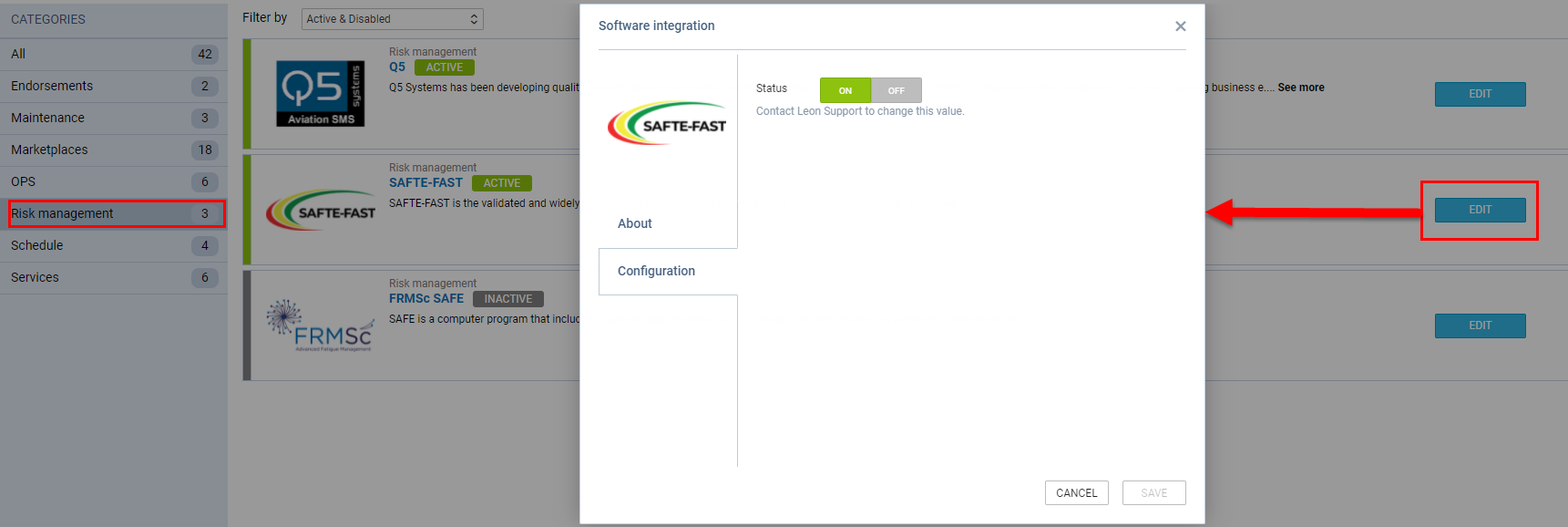

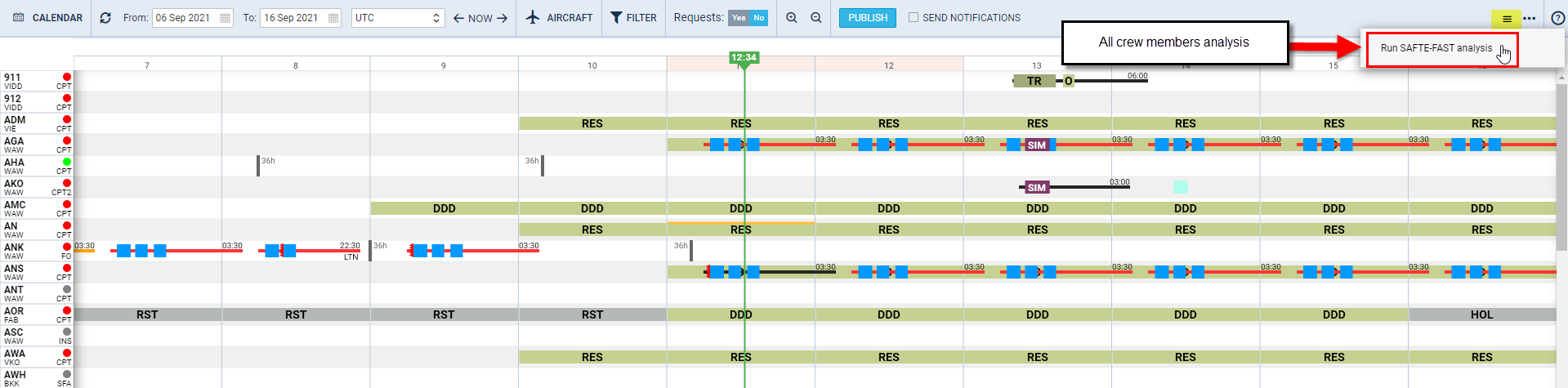

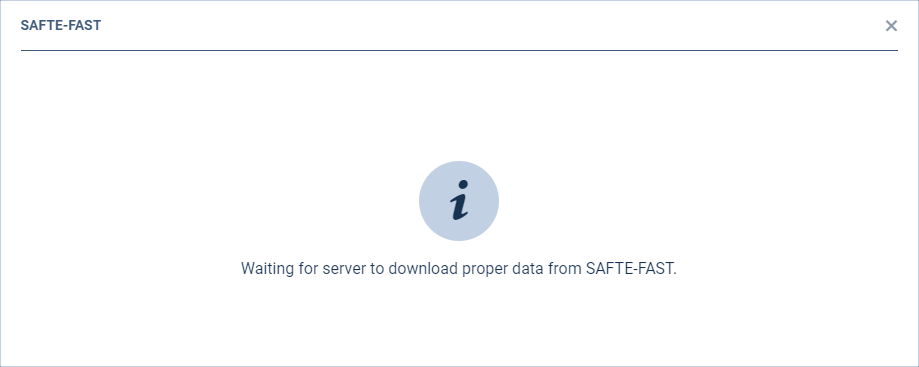

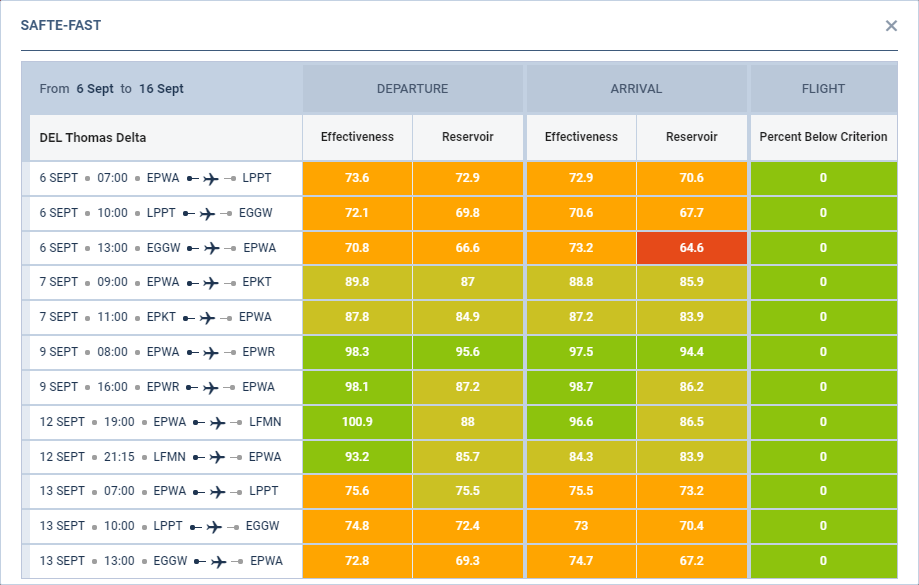

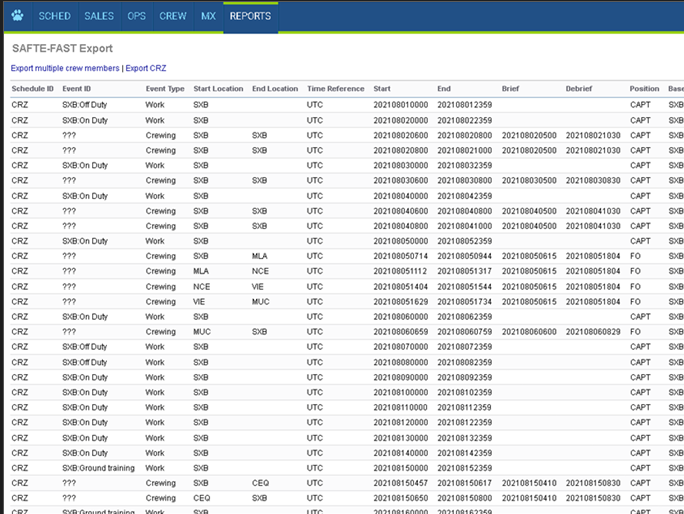

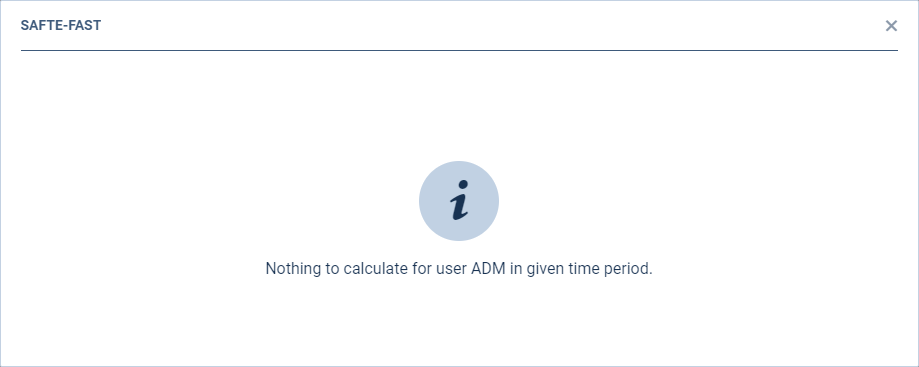

• SAFTE-FAST - crew fatigue management software

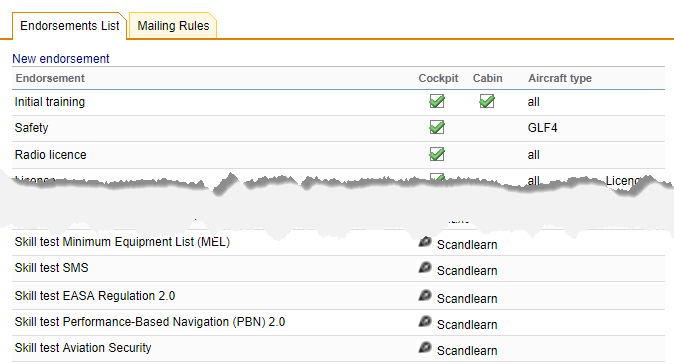

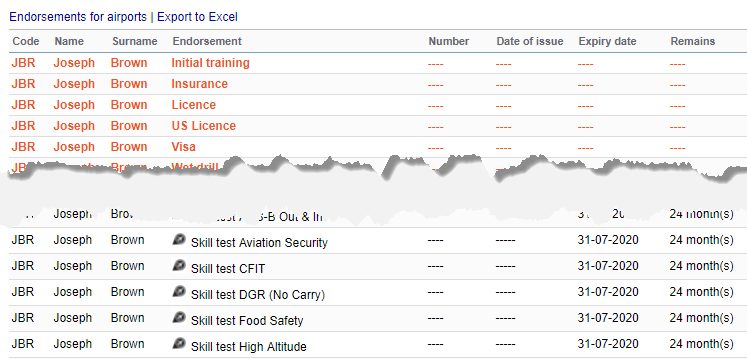

• Scandlearn - training and endorsements management

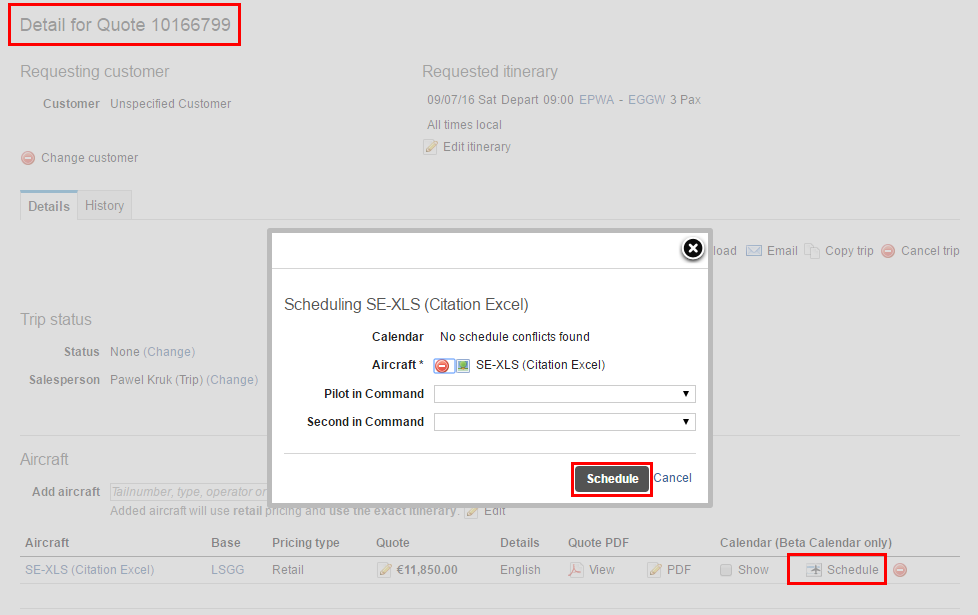

• SchedAero - charter sales management system

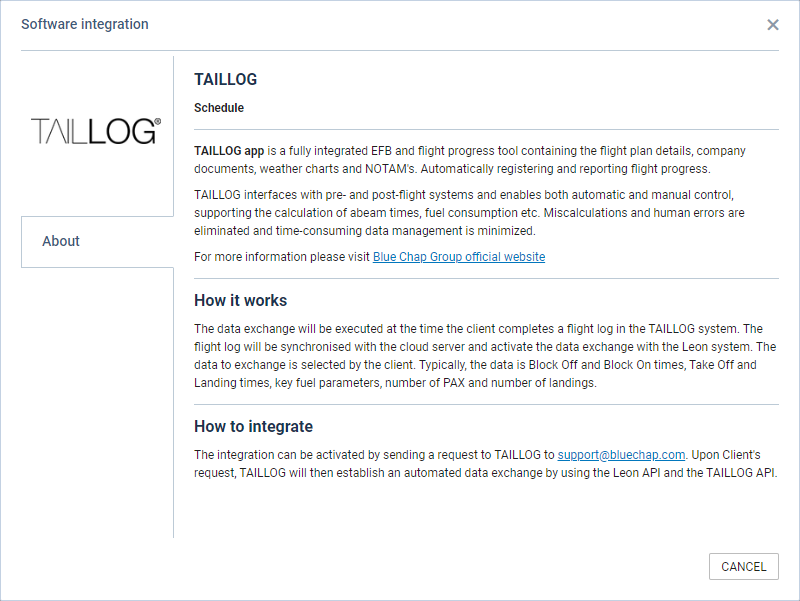

• TAILLOG - EFB and flight progress tool

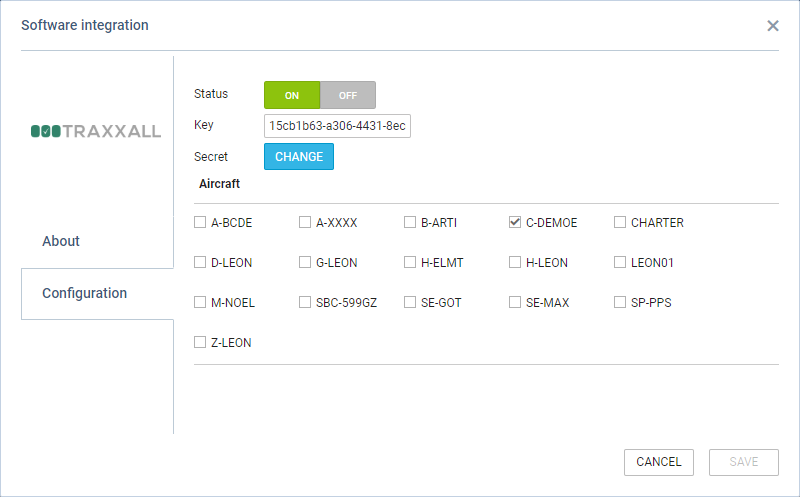

• TRAXXALL - maintenance software

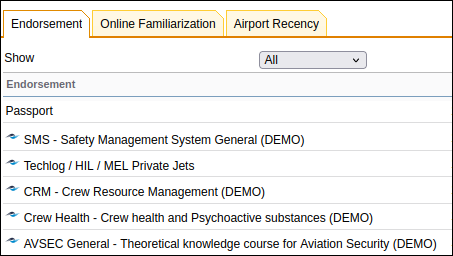

• UAT - training and endorsements management

• Veryon Tracking - maintenance software (formerly FlightDocs)

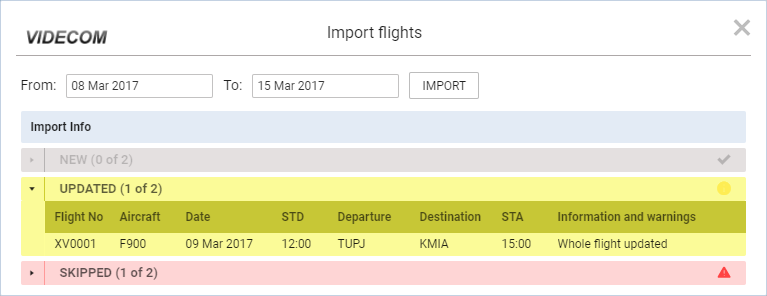

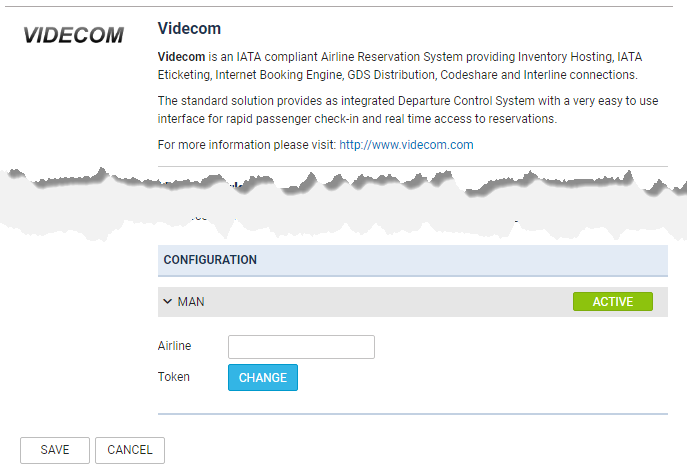

• Videcom - airline reservation system

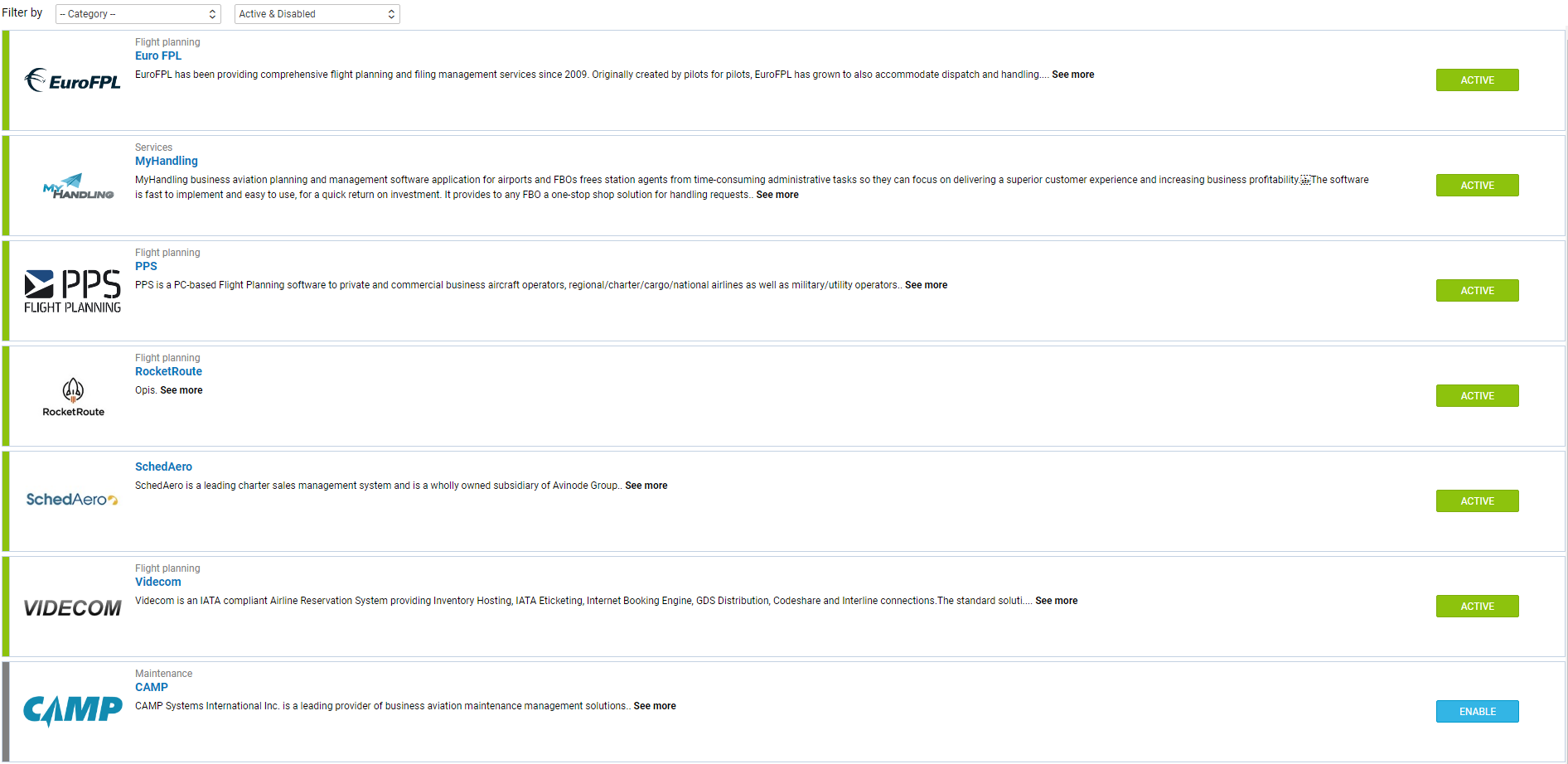

All of the above have to be enabled. Each of these integrations serves a different purpose and requires fulfilling certain steps in order to activate and work properly.

On top of the screen, 2 filters can be used - 1st one allows to search by category, 2nd one by active & disabled integrations.

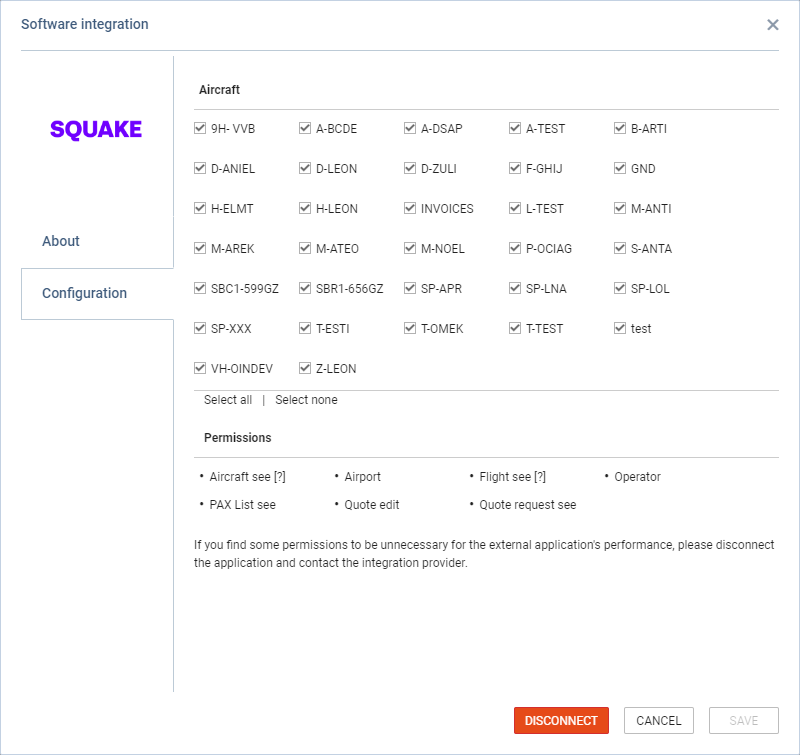

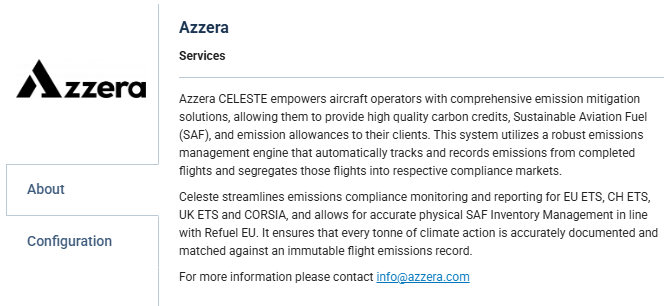

Each integration window has 2 sections: About (it contains a short description of the external software) and Configuration (it usually includes fields to be filled in with login & password or user key). In the configuration section, the user also has the possibility to view the extent of access rights to Leon for software integrations using OAuth.

AeroCRS

AeroCRS is a cloud-based system for managing and operating a small/medium airline scheduled or charter-based operation. For more information please visit Official Website.

How to integrate

If you already are an AeroCRS client, you simply need to contact support@aerocrs.com to receive details for integration with Leon.

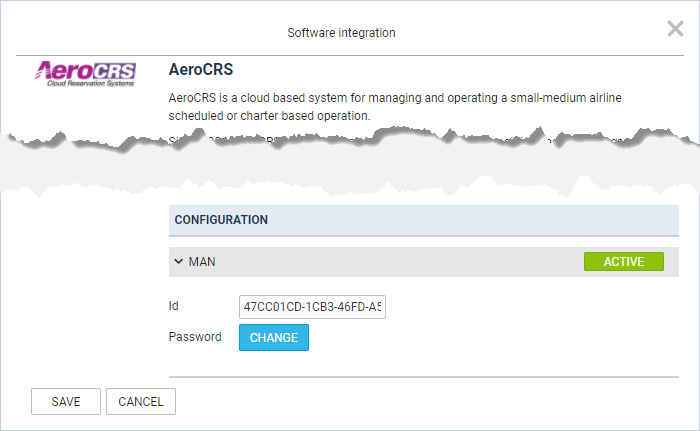

In this section, you can set up the integration with AeroCRS by switching it to Active. Once activated, insert integration details and press SAVE. This completes the process and you can start importing flights from AeroCRS into Leon.

How to import flights

Once it is active, you can start importing flights from AeroCRS.

Go to OPS section where you will see the actions button located in the bottom bar of OPS section which provides you with access to AeroCRS import trigger.

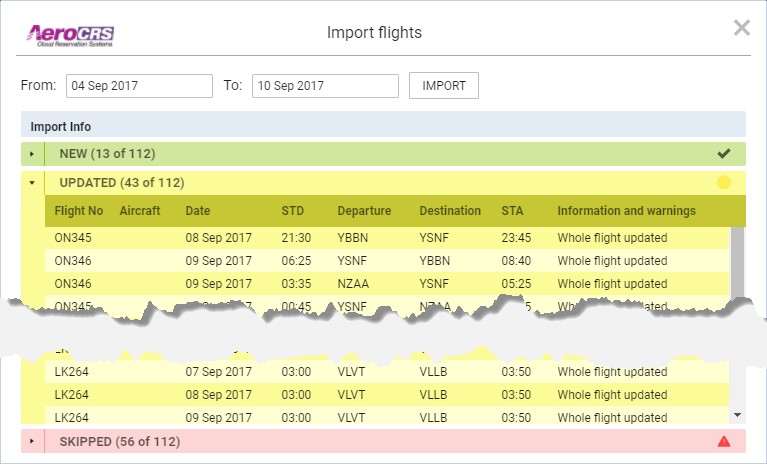

When you click on ‘AeroCRS’ link Leon will open the Import Window where you can choose the timeframe. Timeframe is limited to 7 days.

After clicking on ‘IMPORT’ button Leon will display flights divided into 3 sections:

• New - flights just imported for the first time

• Updated - any updates made to previously downloaded flight. These could be changes made both in Aero CRS and Leon. If the schedule changes are made in Leon, AeroCRS will overwrite it upon the next import.

• Skipped - flights ignored during import due to a number of reasons such as: missing IATA code or number, unrecognized airport, etc.

Once the Import window is closed, the OPS section in Leon will update with the imported flights.

Airport Charges

The AirportCharges platform simplifies an otherwise lengthy and complex research task - to find and calculate landing fees, passenger charges and taxes for a turnaround at almost any airport or country in the world.

Whether you’re looking for a central document library for airport and country charges, an intuitive online analysis system for benchmarking and scenario planning, or a pre-calculated data feed for your finance systems, you’ll find a solution to fit your requirements.

For more information please visit Airport Charges website

How to integrate

In order to integrate you have to have an active account with RDC Aviation.

The integration process is as follows:

1. Log in to your MyRDC account

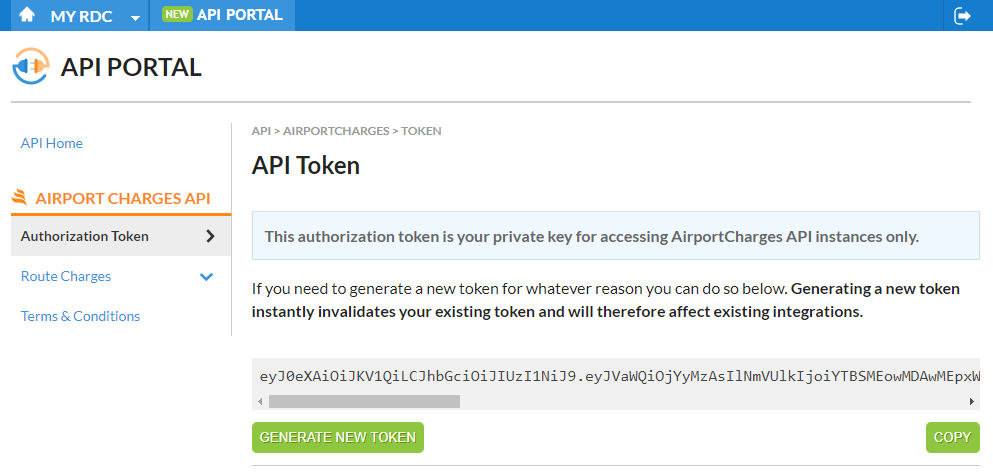

2. In ‘MyRDC’ go to API PORTAL > Authorisation token section, click on GENERATE NEW TOKEN button and then COPY this token

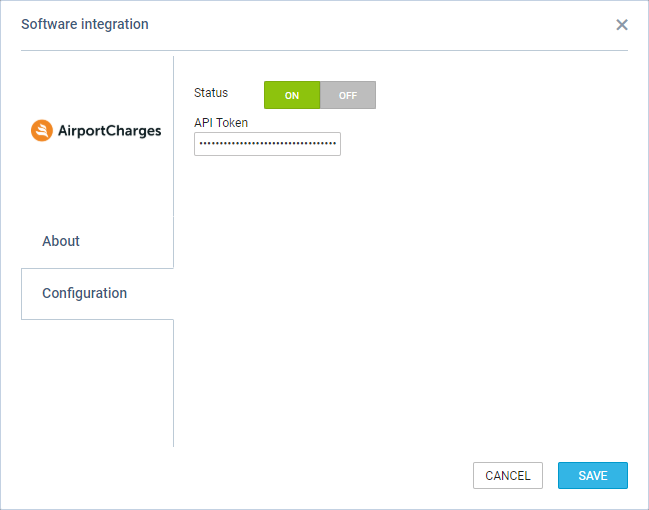

3. Go to ‘Add-ons’ > ‘Airport Charges’ integration section

4. In the ‘Configuration’ tab switch the status to ‘ON’, paste the ‘API Token’ from ‘MyRDC’ and ‘SAVE’ changes

If you don’t have an account with RDC Aviation, you can inquire via this link

How it works

Once the integration is active you will see an additional ‘Airport Charges’ tab when you edit the trip in the Requests/Quotes section. This tab will include the airport charges for the airports on the selected routes. More information about the tab can be found here.

AMOS

Swiss AviationSoftware unites 30 years of IT experience with profound MRO expertise and offers its customers the functionally unsurpassed and technologically state-of-the-art maintenance system AMOS.

AMOS is a comprehensive, fully integrated software package that successfully manages the maintenance, engineering and logistics requirements of modern airlines and MRO providers by fulfilling demanding airworthiness standards

More information can be found here

How to integrate

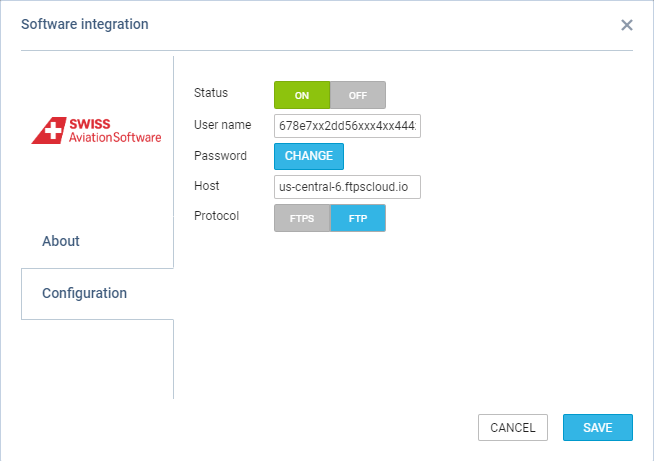

To integrate, the following details are required:

To integrate, the following details are required:

• Username to FTP/FTPS/SFTP Server

• Password to FTP/FTPS/SFTP Server

• Host - selecting either the URL or IP address

• Selecting the protocol to which the files should be uploaded: FTP, FTPS, or SFTP

Leon will validate the data by trying to connect with the selected server.

How it works

Leon generates two types of files and uploads the files to the selected server as follows:

• Executed flights:

  • Include the flight data generated for the past 7 days from the end of the current day to the beginning of the day 7 days in the past

  • The file is generated and uploaded into the ‘executed_flights’ folder on the server every hour.

• Future flights:

  • Include the flight data generated for the following 6 months from the beginning of the current day until the end of the day 6 months in the future

  • The file is generated and uploaded into the ‘future_flights’ folder on the server every hour.

APG - Aircraft Performance Group

The APG activation process is done globally for the airline rather than per User.

In order to activate APG integration you need to:

1. Go to the ‘Add-ons’ section and open the ‘Configuration’ tab of the APG integration section

2. Switch the Status button to ‘ON’

3. Insert APG dispatcher‘s login credentials. These are the login details of a person with the ’dispatcher’ status in APG

4. You can also tick the Autosend button. It will automatically send the schedule to APG every 5 minutes

5. Save changes. This will activate the integration for all the Users

If the credentials are incorrect Leon will display a warning message. If along the way, you change your credentials in APG, you will be asked to update it in Leon.

Existing APG Users, who configured APG integration with their own login and password from the OPS page will not be affected by this change unless they wish to activate the ‘Autosend’ button. In this case, the abovementioned activation process must be followed.

Once the above conditions are fulfilled you can start sending flights to APG.

If you are sending the flights manually, this can only be done from the OPS section of Leon.

To send a schedule to APG you have to:

1. Click on the APG link available in the documents tooltip (right-click the mouse in the Table section) in order to activate the “Send to APG” window.

2. The “Send to APG” window displays chosen the schedule and gives the option to choose the aircraft and crew. Aircraft and crew suggested in this window are the ones input in the APG database. Click the “Send” button to send to APG.

3. Schedule available to view in APG.

APG has its own database of Crew and Aircraft.

When sending flights to APG:

• Flight Number - must be A-Z, 0-9, from 2 to 7 digits long.

• Crew - are being matched by emails (work email address in Leon). If emails do not match, Crew space is left blank and Crew have to be picked manually in APG software.

• Aircraft - matched by its registration. Hyphens in the registration are ignored.

For more details please visit: https://flyapg.com/

IMPORTANT!

ARINCDirect

ARINCDirect is the world leader in business aviation solutions, including flight planning, weather, communications, high-speed data, international trip planning, and fuel services.

More information about ARINCDirect can be found here

How to integrate

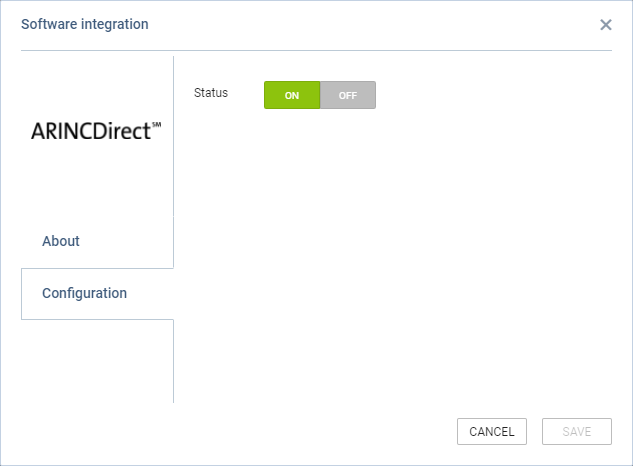

In order to integrate with ARINCDirect, you simply need to go to the ‘Configuration’ panel of the Add-on, switch the integration to ‘ON’, and save the setting.

Once the integration is activated, the ARINCDirect export option will appear in the ‘OPS’ sections under the ‘SEND SCHEDULE TO’ option in the ‘Documents Menu’.

How it works

The integration allows sending planned flights to ARINCdirect.

After clicking on the ‘ARINCDirect’ option located in the ‘Documents Menu’ > ‘SEND SCHEDULE TO’ will open an ARINCDirect login page. Flights will be uploaded upon logging in to the ARINCDirect account.

It is possible to only send the flights with the aircraft registration assigned and without the Journey Log filled in (including partial Journey Logs).

Currently, it is only possible to send one flight at a time. Leon will not allow sending multiple flights at one time.

Flights have to be sent manually from the OPS section. Currently, no automation is available.

Aviapages

Aviapages is a worldwide business aviation marketplace. It has been providing the business aviation industry with IT, marketing, directory and sales solutions since 2015. These solutions include tools such as a flight calculator, charter request, charter live map, and API.

Aviapages is today one of the leading Google Search appearance directory websites and includes among its premium members around 160 companies from Europe, USA, Russia and the Middle East. For more information and pricing, please visit: aviapages.com

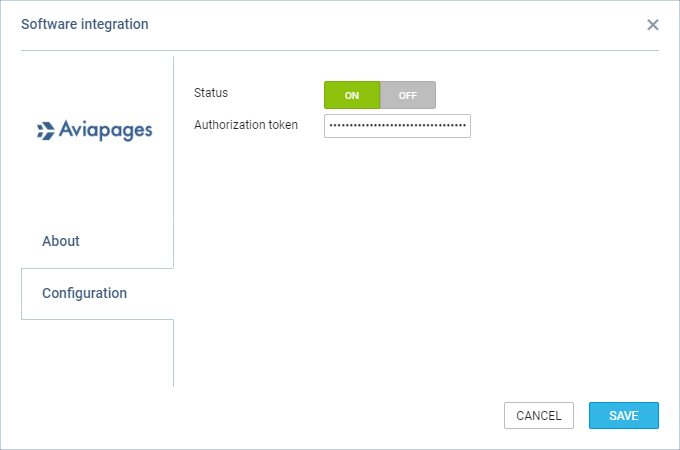

How to integrate

To integrate please contact support@aviapages.com or Nastya Pocatilova nastya.pocatilova@aviapages.com from Aviapages. You will get an authorization token, which you can use in Leon Settings -> Add-ons to activate the integration.

How it works

The integration allows calculating flight times in Leon Sales module using Aviapages engine.

More information on flight time calculations from Aviapages can be found here.

Avinode

Avinode is the world’s largest online Marketplace for buying and selling private air charter.

The integration allows downloading quotes from Avinode into the section Requests/Quotes, exporting aircraft availability and empty legs to Avinode, including options and opportunities.

How to integrate

Before enabling this option you need to contact techsupport@avinode.com and request a special ‘Authorization key’ (it is a different key to the one you use to log in to Avinode software).

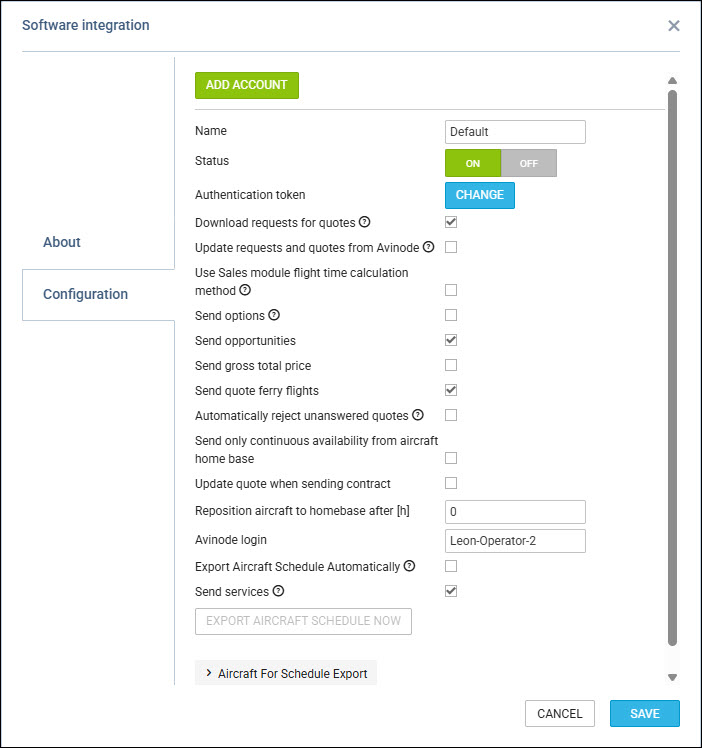

Once you have received it, click the button ENABLE and in the section ‘Configuration’ click ON, insert the Authorization key provided by Avinode and mark which aircraft schedule should be sent to Avinode.

You can also define additional settings, such as:

• Download requests for quotes - enable automatic downloads of the quote requests into the Requests/Quotes section.

• Update requests and quotes from Avinode - enable automatic request status updates when accepting/declining quotes in Avinode (as a Seller)

• Use Sales module flight time calculation method - suggested flight times will be based the default flight time calculation method selected in the Admin Panel > Sales Module > Default flight time calculation method

• Add subcharter quotes automatically - Accepted Avinode requests will be added automatically as subcharter quotes to matching requests in Leon

• Send options – Non-confirmed flights (Options) will also be exported to Avinode.

• Send opportunities - flights with the status ‘Opportunity’ (defined in OPS, tab TRIP) will be sent to Avinode.

• Send gross total price - setting allowing send the Gross price (including VAT) iso Price to Avinode

• Send quote ferry flights - depending on the setting, ferry legs are sent (ticked) or not sent (unticked) to Avinode when accepting the quote from Leon. In Avinode, it will be reflected in the Trips > Selling > Details > tab ‘Quoted’

• Automatically reject unanswered quotes - accepting Avinode requests in Leon will automatically reject unanswered quotes in Avinode

• Send only continuous availability from aircraft home base – sends aircraft availability only when the aircraft is located/repositioned to Home Base.

• Update quote when sending contract - this setting allows sending the contract to Avinode and changing the status of the request. Once the contract is sent, the status of the request both in Avinode and Leon will switch to ‘Accepted’

• Reposition aircraft to homebase after [h] - figure in this field indicates after how many hours the aircraft should be automatically repositioned from the destination airport of the last leg in the schedule to the aircraft’s home base, if no other activities are found in specified timeframe. This will create a short, one-minute flight in the Avinode schedule to indicate that the aircraft has been repositioned.

• Avinode login - this field will allow inserting the default user which will be used for API connection between the Avinode and Leon

• Export Aircraft Schedule Automatically - automatic export of the schedule to Avinode. Export occurs every 20 minutes and includes data for the next 3 months

• Send services - allows sending the details of the following providers selected in the OPS Checklist to Avinode: Handler/FBO names and PAX Transport provider names

• ‘EXPORT AIRCRAFT SCHEDULE NOW’ button - this allows exporting schedule to Avinode at any given time.

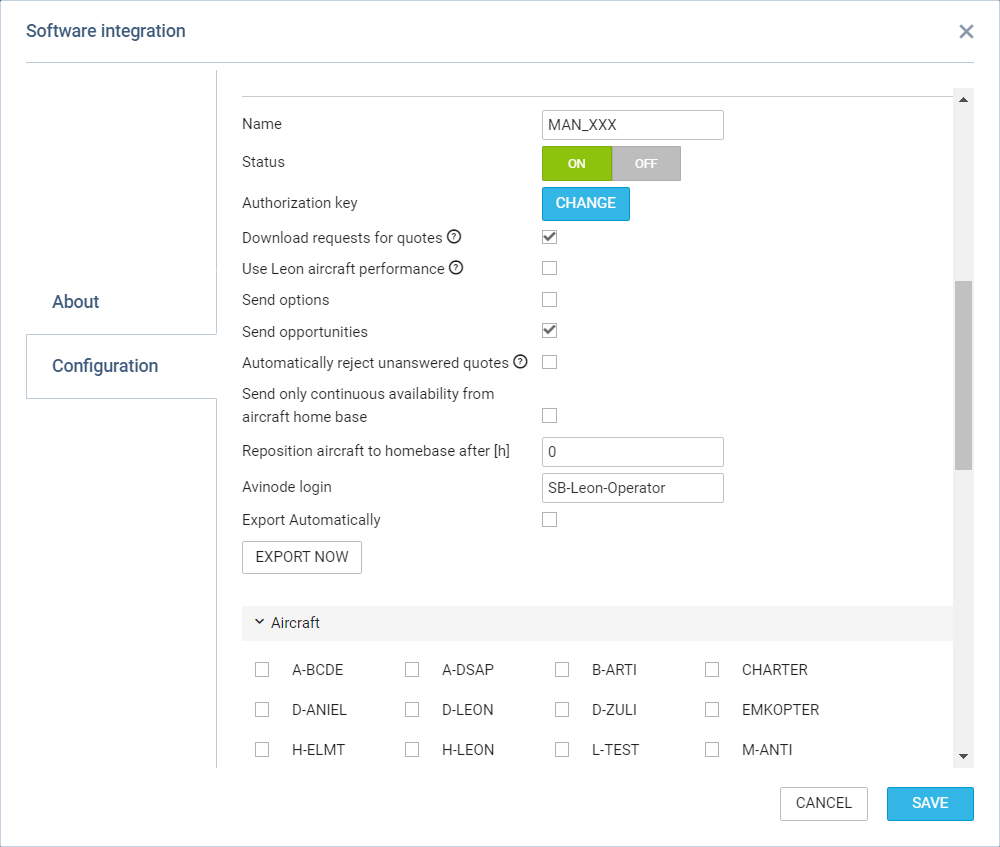

ADD ACCOUNT allows connecting Leon account to another account in Avinode. Functionality is explained at the end of this subsection.

How it works

Export

In order to allow buyers to search available aircraft for requested trips, Avinode requires a precise aircraft schedule from aircraft operators.

Leon allows automatic schedule export to Avinode for selected aircraft. All aircraft for which the schedule is sent automatically to Avinode should be configured in Avinode for receiving data from Leon.

The first step in the export aircraft availability is integrating Leon with Avinode. This process is explained here.

If you want to receive messages after each export of flights to Avinode, type your code or the first letters of your name in the field Recipients.

Once all has been set up tick the aircraft of which flights you want to be exported.

EXPORT INSIGHTS

Before sending the data to Avinode there are steps required to be done:

• The aircraft needs to be active in Avinode Marketplace with the status: Fully Active.

• An API connection needs to be set up in the Avinode Marketplace for the company marketing the aircraft in the Avinode Marketplace. This company is usually the operator, but it can also be a different company (i.e. not the operator holding the AOC for the aircraft) marketing the aircraft. API Connections can only be set up by Avinode staff and are usually done by product specialists (support@avinode.com) upon request from the company marketing the aircraft.

• The aircraft must be configured in the Avinode Marketplace to receive automatic schedule updates (i.e. Aircraft Schedule Update Type = Integrated). This can only be configured by Avinode staff and is usually done by our product specialists (support@avinode.com).

• The company marketing the aircraft should have Activity Type Mappings configured in their Avinode Marketplace account. More information below

Export frequency

Leon sends a schedule for all configured aircraft every 15 minutes. It is also possible to make manual exports from the Avinode Add-on control panel.

What is being sent

Leon sends all activities from the time of export to the last aircraft activity in the database. Leon by standard sends all flights, reservations, and maintenance. It is also possible to send options and opportunities as regular activities.

The schedule for each aircraft has a form of a continuous timeline. Spaces between activities in the exported period are filled with special ONGROUND activities.

Activity Type Mapping – Leon Side

Aircraft activities prepared to send are mapped on codes corresponding to available Avinode activity types. However, the operator doesn’t have to configure the Avinode side with the same corresponding codes (see the section below).

There are five activity types on Leon side:

• FLIGHT – regular trip with passengers (pax_num > 0), including ferry trips that have passengers aboard - in Avinode shows as Flight Occupied.

• EMPTY – ferry trip with no passengerss - in Avinode shows as Empty Leg Availability.

• MAINT – an aircraft reservation that is NOT available for charter (any status: CONFIRMED, OPTION, OPPORTUNITY) - in Avinode shows as Occupied.

• OPTION – any trip (regular or ferry, with or without pax) where trip status = OPTION - in Avinode shows as Option Availability.

• OPPORTUNITY - any trip (regular or ferry, with or without pax) where trip status = OPPORTUNITY; also aircraft reservation that is available for charter with trip status = OPPORTUNITY - in Avinode shows as Ferry Availability.

• ONGROUND – an aircraft reservation that is available for charter with trip status = CONFIRMED or OPTION; also auto-generated synthetic activities for idle aircraft (gaps before first flight, no flights in period) - in Avinode shows as Onground Availability.

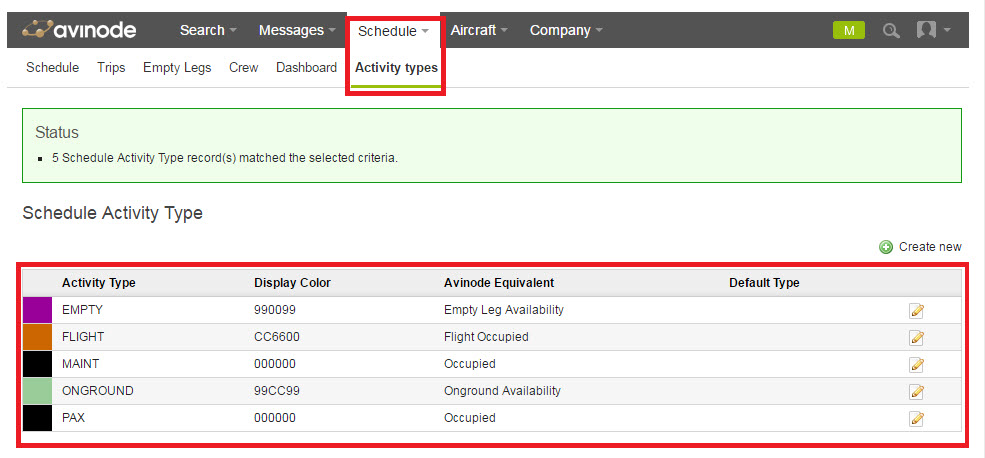

Activity Type Mapping – Avinode Side

Activities exported from Leon can be mapped to one of Avinode’s available statuses and therefore be subject to the search engines for trip requests and empty legs.

Empty Leg Availability

All activities mapped to this type will be considered empty leg availability and posted in the Empty Legs list in the Avinode System.

Ferry Availability

Activities mapped to this type will be considered available. This option will not post an Empty Leg as the aircraft is assumed available until occupied for the “passenger leg”. The engine will take into account the following “passenger leg” and will ensure that the aircraft has enough time to be in position for that.

Flight Occupied

Aircraft will be considered occupied and will not show when searches are performed in the Avinode System. This option should be used for all flight-related occupancy e.g. 135 trips, 91 trips, etc.

Occupied

Aircraft will be considered occupied and will not show when searches are performed in the Avinode System. This option should be used for all non-flight occupancy e.g Maintenance.

Onground Availability

Aircraft will be considered available on-ground. This option can be used to indicate transient (away from home base) availability. This will price the aircraft from the indicated airport, rather than the home base.

Option Availability

This is an “information only” type. Activities mapped to this type will be shown in the Schedule for the aircraft, but do in no way affect the schedule when searches are performed in the Avinode System as the aircraft is still considered available. This can be used for non-confirmed trips.

Default Avinode mapping:

• FLIGHT – Flight Occupied

• EMPTY – Empty Leg Availability

• MAINT – Occupied

• OPTION – Option Availability

• OPPORTUNITY - Ferry Availability

• ONGROUND – Onground Availability

Operators can manually change mapping settings in Avinode for their own purposes.

Special configuration options

Send Options

If this setting is configured Leon also exports flight options. Options have different mapped status OPTION, discriminating them from a confirmed flight. Note that reservation and maintenance options are never sent to Avinode regardless of this setting.

Send Opportunities

If this setting is configured Leon also exports flights with opportunity status. Opportunities are sent to Avinode as empty legs and they should be mapped to the “Ferry Availability” Activity Type on the Avinode side.

Continuous availability from aircraft homebase

This option changes normal schedule export and exports only one activity for each aircraft indicating ONGROUND status of the aircraft in its homebase airport. This artificial activity is only day long and the Avinode system extends this status to future times. Note that Leon in that mode doesn’t send any real activity for all aircraft.

Auto reposition availability to home base after specified time [h]

It is possible to set automatic (artificial) repositioning to the home base after each activity. If the time between the last and next activity is greater than this factor (set in hours) system will add an artificial repositioning activity lasting one minute indicating ONGOUND status from the aircraft homebase.

This option is disabled when set to 0.

Import

Here you can set up an automatic Avinode quotations download by ticking the Download quotation automatically checkbox. Once ticked, Leon will download quotations every 15 minutes.

Connecting multiple Avinode accounts

It is possible to connect multiple Avinode accounts to an account in Leon, considering one operator has configured more than one account in Avinode.

In order to connect further Avinode accounts to Leon account, the following steps are required

• Contact techsupport@avinode.com and request an ‘Authorization key’ for the additional account

• Contact Leon Support Team to activate the function

• Go to ADD-ONS > Avinode integration > ‘Configuration’ tab and click on the ADD ACCOUNT button located at the top of the configuration pop-up window

• Section for new connection should appear in the configuration pop-up window, as per the screen on the right

• The remaining part of the configuration works exactly the same as the standard configuration

At this stage, Leon downloads the requests from Avinode accounts as well as sends the empty legs and aircraft availability to the relevant accounts.

Additionally, multiple Avinode account options are available when performing the following actions:

• manually download the quotes from the Avinode account by clicking on the ‘DOWNLOAD REQUEST FROM AVINODE’ option, located at the bottom of the ‘Requests/Quotes’ view:

• selecting ‘FIND SUBCHARTER/COMPARE THE PRICE’ option in the request:

All connected Avinode accounts include the option of calculating the flight time based on the aircraft performance inserted in Avinode.

CAMP

CAMP Maintenance is the industry’s leading Aircraft Maintenance and Regulatory Compliance Management solution.

How to integrate

In order to activate the integration, you need to contact support@campsystems.com and request User Name and Password for integration with Leon. The integration login details are not the same ones you use to log in to CAMP. Once you have this information, you can switch the Status to ‘ON’ and insert it in the CAMP integration section (Login and Password). The integration will activate upon saving it.

You can always change the password received from CAMP by clicking on ‘CONFIGURE’ and then the ‘CHANGE’ button.

How it works

The integration offers automatic TAH, TAC updates for all engines and APU.

Leon exports aircraft TAH & TAC (Total Aircraft Hours & Cycles) as well as APU hours (if updated in the Journey Log in Leon). CAMP integration works one way only from Leon to CAMP.

To make the integration work properly, you need to insert the Aircraft serial number in Settings > Fleet. Integration will check the aircraft serial number and registration.

Then, set up the airframe & engine details in a section MX > Fleet. Click on a selected aircraft and enter the tab CAM. Here, select Airframe ‘start date’ and insert TAH & TAC values. You can do the same for engines. You can also add separate data for ‘APU’ (Aircraft Power Unit), but it does not get automatically increased from the Journey Log entries (like engines) - this is a cumulative value, not hours per single flight. These are the values for the beginning of the day.

Centrik

Centrik is an operational management system that provides you with the tools you need to manage your business in any regulatory climate. Centrik is an easy-to-use interface that makes filing reports or checking your operational status with modules to manage Risk, Safety, Compliance, Manuals, Documents, Meetings, Training and much more.

How to integrate

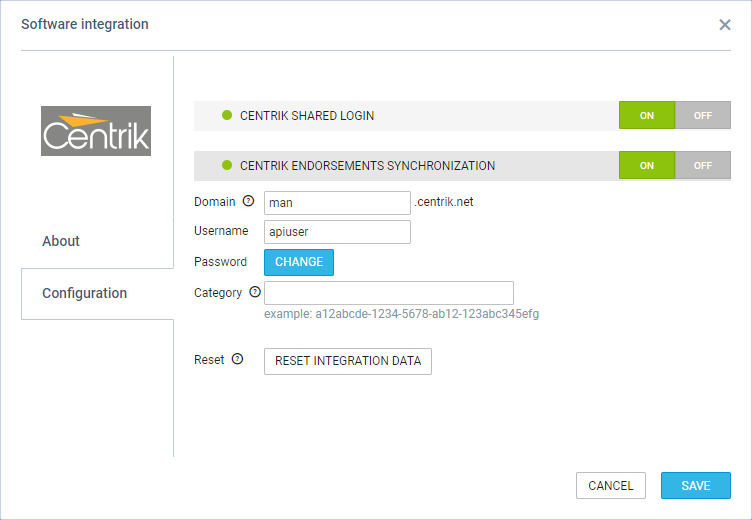

There are 2 sections in the “Configuration” Section:

• CENTRIK ENDORSEMENTS SYNCHRONIZATION - activates the integration and triggers the endorsements import process

To activate this integration all you have to do is click the button ON in the CENTRIK ENDORSEMENTS SYNCHRONIZATION section, insert your Centrik details (domain, login and password) and save.

RESET INTEGRATION DATA button is available only to the administrators and allows reloading all Centrik endorsement data with one click. The process of resetting the endorsements might take a few minutes depending on the number of records

Optionally, you can also insert the “Category ID” information (“Training System ID”), if you need to limit endorsements loaded from Centrik to a particular category. In order to receive the string reflecting “Category ID” you need to contact Centrik support and they will provide you with one.

How it works

Once the integration is completed, Leon will download the endorsement definitions and the endorsements for particular Crew from Centrik. Leon will not replace existing Leon endorsements with the downloaded ones but will create additional records in the endorsements list. It is the Client’s choice to remove the non-relevant ones.

The Crew endorsements are matched by User email address. If the email addresses between Centrik and Leon a different for a particular User, Leon will not be able to match and download the endorsements for the User.

Changes to endorsement in Centrik will update endorsement details in Leon. The new endorsement in Centrik - if there is a new endorsement added in Centrik, Leon will update the record with the new one.

In a section Crew > Endorsements those imported from Centrik appear with Centrik Logo.

The integration data is reloaded once a day at 20:00 CET/CEST.

Endorsements imported from Centrik are not editable.

DeliSky

DeliSky is a leading provider of VIP in-flight catering services to private & business jet operators and flight attendants around the world.

The catering services provided through a network of premium catering partners entail the finest cuisine at the highest standards and an efficient online order system for a convenient order process.

For more information, please visit DeliSky Official Website.

How to integrate

In order to integrate with DeliSky you need to contact DeliSky support at info@delisky.com and request Login and User Key details. Once you have these, switch the status to ‘ACTIVE’, insert provided integration details and save changes. Once saved, you can start ordering your Catering with Delisky via Checklist in Leon.

How it works

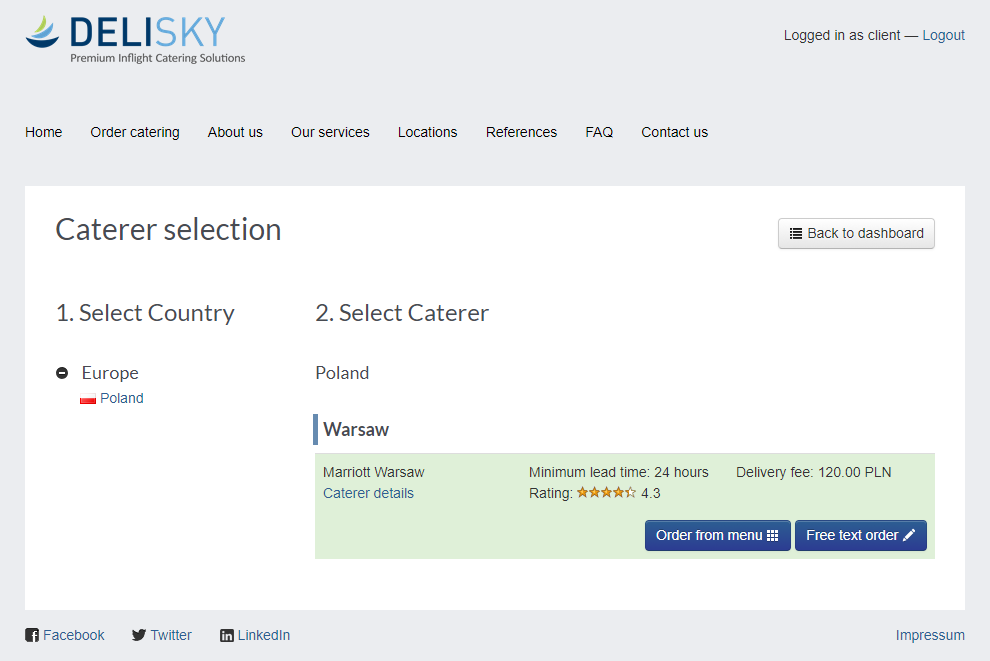

The integration allows you to place an order with DeliSky via a checklist in Leon. A link will be available next to the CATERING item in section PAX. Clicking on the link will transfer you to the DeliSky page.

If DeliSky provides catering service at the chosen Airport you will be provided with a Caterer selection page. Clicking on the ‘Order from menu’ button will allow you to submit the catering order.

You can also use the ‘Free text order’ option to arrange the catering. This option will allow you to type in your order. The rest of the details such as delivery date, Flight details, etc, will be imported from Leon.

If there is no DeliSky service you will be presented with ‘Airport not found’ message on the ordering page.

If you are not integrated you will see the following message: ‘You are not integrated with DeliSky. Please contact your Administrator in order to activate the integration.’

DocuSign

DocuSign helps companies and individuals go fully digital. DocuSign is an easy-to-use digital transaction platform that lets users send, sign and manage legally binding documents securely in the cloud.

Integration with Leon allows sending and signing contracts generated using Sales Module via DocuSign. More details on the integration workflow can be found in dedicated article: Add Ons Integration With Docusign

For more information and technical guidance visit their website: https://www.docusign.com/

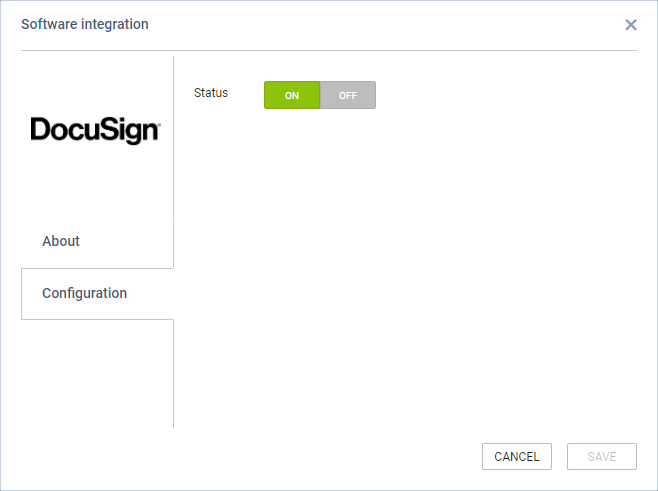

How to integrate

It is mandatory to have an active account with Docusign.

First step is to contact us via Customer Portal and we will activate the integration for the operator in the configuration tab.

Once the operator is connected, each User connects ones account to the account in DocuSign via Requests/Quotes Panel.

More information about connecting a user as well as usage of the integration is explained in Requests/Quotes Panel

Eurocontrol

Eurocontrol is an international organization working to achieve safe and seamless air traffic management across Europe. Eurocontrol works with national authorities, air navigation service providers, civil and military airspace users, airports, and other organizations. Its activities involve all gate-to-gate air navigation service operations: strategic and tactical flow management, controller training, regional control of airspace, safety-proofed technologies and procedures, and collection of air navigation charges. For more information, please visit Eurocontrol website.

In order to integrate with Eurocontrol, you have to switch the Status to ON and save changes. If the Operator ICAO code in the ‘Settings > General Settings’ section is the same as registered with Eurocontrol, the integration will be completed upon saving changes. If the ICAO code in Leon doesn’t match the one registered with Eurocontrol, you will see an error message saying “Operator ICAO not recognized by Eurocontrol”.

Operator’s ICAO designator must be included in the flight plan’s item 7 (Aircraft Identifier), or item 18 (Other Information), sub-field OPR/. In the second case, no other remarks should be added in the OPR/ sub-field, besides the ICAO designator.

When the integration is completed, Flight Watch in Leon will start receiving flight times from Eurocontrol servers. You will recognize them by opening a Flight Watch and hovering the mouse over the time value, as shown in the screenshot above. Eurocontrol will only send CTOT, ATD, EET, ETA and ATA times plus the PAX number.

In the configuration of Eurocontrol it is possible to enter multiple operator ICAO and corresponding IATA codes by clicking on icon:

This will enable connecting operators performing the flights on behalf of another operator to the Eurocontrol movement tracing by comparing both codes. For example, if Operator MAN services the flights starting with TP for Operator TAP, inserting TAP/TP in relevant fields in the settings will allow tracing MVTs for the third party Operator.

It is also possible to use that integration with aircraft operated privately, without the operator declared in the FPL. In such case, go to the fleet settings, and tick the checkbox “Enable Eurocontrol tracking (private flights)” - if enabled and if Eurocontrol integration is activated, then flights of this aircraft will be tracked by Eurocontrol integration, regardless of whether the flight is identified by the flight number including the operator’s ICAO designator, or by the aircraft registration. Moreover, if you use IATA codes in your flight numbers, ensure the IATA code field in the General Settings is filled.

EuroFPL

EuroFPL is providing specialized global aviation logistics services, turbine aircraft training and mentoring worldwide, and the EuroFPL flight plan filing system.

In order to integrate with EuroFPL contact, their support dept on: support@eurofpl.eu to obtain a special login & password for the integration with Leon. Once you have received it and you have admin rights in Leon, go to Settings > Add-ons and enable the integration with EuroFPL. In the pop-up screen click INACTIVE button to activate the connection to your operator, then do the same in the field below (showing your operator code + your personal code defined in Leon) and paste + save credentials.

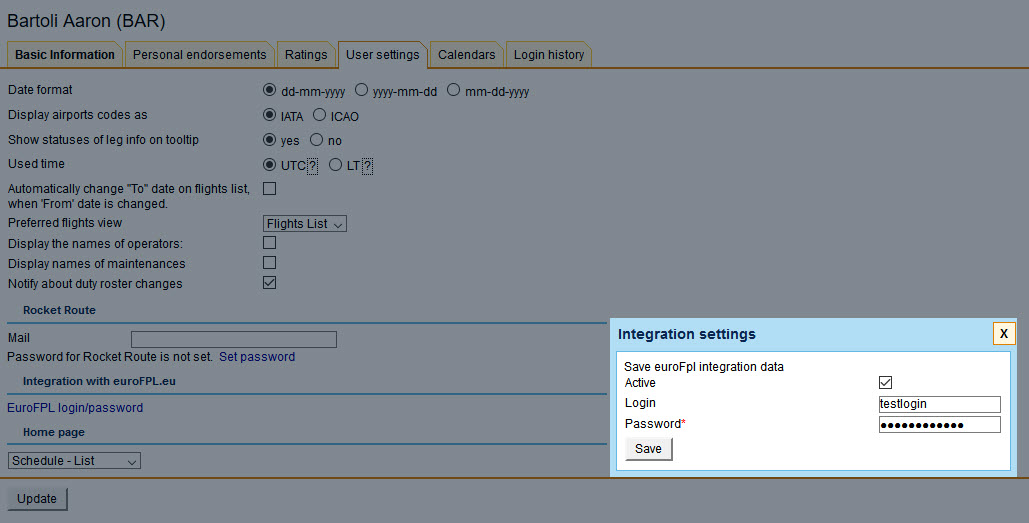

All users can integrate with EuroFPL even if they don’t have access to the section Add-ons - they can do it in their personal profile (by clicking their name in the top-right corner), in the tab User settings, where there is a link EuroFPL login/password. Click the link and insert credentials (previously received from the EuroFPL support dept).

Sending flights to EuroFPL software works in the same way as with RocketRoute. In a section OPS, you need to mark flight/flights, right-click with the mouse and select sending the flight to EuroFPL (at the bottom of the pop-up screen). A new pop-up screen will show up with the flight details, click ‘Export’ to send it out.

On the EuroFPL side you need to click Flightplan builder link, and the button load to find details of the flight exported from Leon.

If a field ‘Type of Aircraft’ shows a blank cell it means you need to add your aircraft type in EuroFPL, section ‘Aircraft Hangar’.

FlightBridge

FlightBridge is the leader in private aviation trip logistics. Book hotels at discounts of up to 30% or more, rental cars, commercial flights, catering, and other services – and communicate with FBOs and handlers – all in one place. Book for yourself or your whole team, each with their own form of payment and loyalty information. Integrate with Leon to sync trip details automatically.

FliteBrief

FliteBrief is the new generation of crew briefing and flight monitoring suite of products. With a flexible and customizable flight planning portal, dispatchers, pilots and airline operations personnel can effectively manage the content of flight briefing packages, as well as the distribution of those packages to crew.

To send your schedules to FliteBrief, you need to get an API Key and Provider URL for that service. You can get it from Jeppesen Support Team. Once you have it, enter it in the integration configuration panel.

The data we send to FliteBrief contains flight schedules and crew composition.

Getting the JL data from Jeppesen‘s SFTP server is also possible. To configure it, you need to tick the ’‘Download Journey Logs from SFTP’’ checkbox, and provide the SFTP server details obtained from Jeppesen:

• URL/IP

• Login

• Password

• Folder

ForeFlight

ForeFlight Dispatch is a powerful new component of ForeFlight Web that delivers next-generation, multi-user, “schedule-to-mobile” flight planning, resulting in greater efficiency and productivity for flight departments of any size. It keeps the entire operation in sync and running smoothly by providing a centralised list of all planned and filed flights that are visible to everyone.

Dispatch integrates crew assignment and mobile flight releases into its flight planning workflow, allowing planners to release flight plans directly to assigned crew members’ iPads and iPhones before departure.

In addition, planners can get a better insight into the status of any flight and an overall view of the day’s operations, while pilots can easily see flights assigned to them both on the web and on their mobile devices.

How to integrate

To integrate, you have to have an active account with ForeFlight

In ForeFlight, you need to generate an API key that allows integrators to access the customers’ accounts.

The format of the API key is a string, e.g.

FS1+nO1EJH3sx2OQEAU1QxT10Wk8RU9tb7W+j7H4/oY=

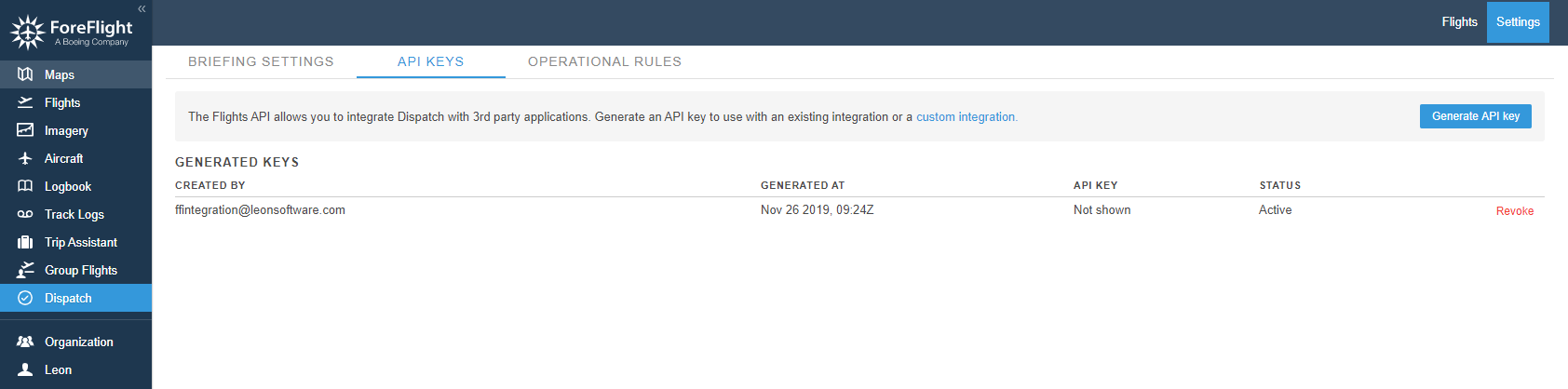

To generate API key you need to:

1. Log in to your ForeFlight account

2. Go to 'Dispatch' section within your ForeFlight account

3. Click the “Generate API key” button in the top right-hand corner to generate a new API key

All the instructions on how to generate the API key in ForeFlight are explained here

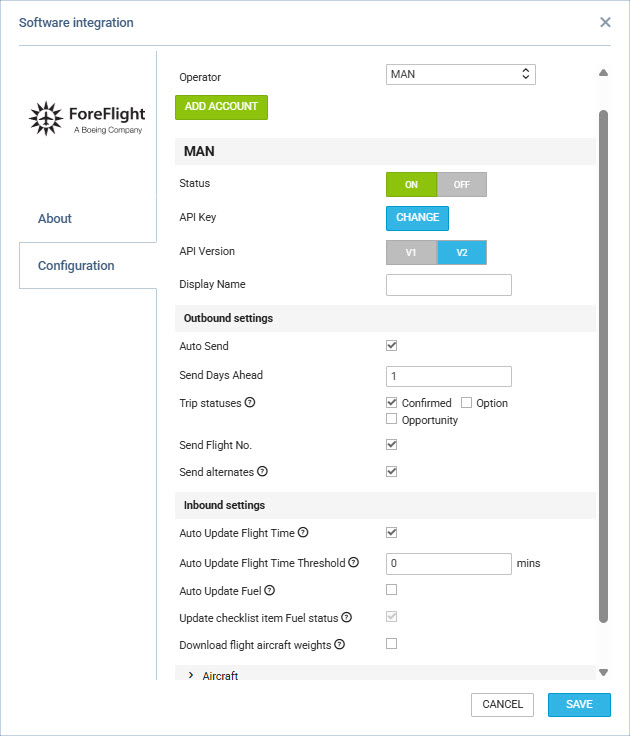

The next step is to go to Add-ons section in Leon. In the ‘Configuration’ tab of ForeFlight integration, you need to:

1. Switch the status to ‘ON’

2. Insert the ‘Integration API key’ generated in ForeFlight

3. You can choose which API Version (v1 or v2) is used.

4. Optionally, insert the name in the ‘Display name’ field. This field can be used in case of multiple ForeFlight integrations for different entities/Bases within one Leon account

5. Tick the ‘Auto-send’ checkbox if you wish Leon to send the flights automatically

6. ‘Send Days Ahead’ - insert the value for the number of days ahead for which the flights should be sent. The limit on days is set to 30

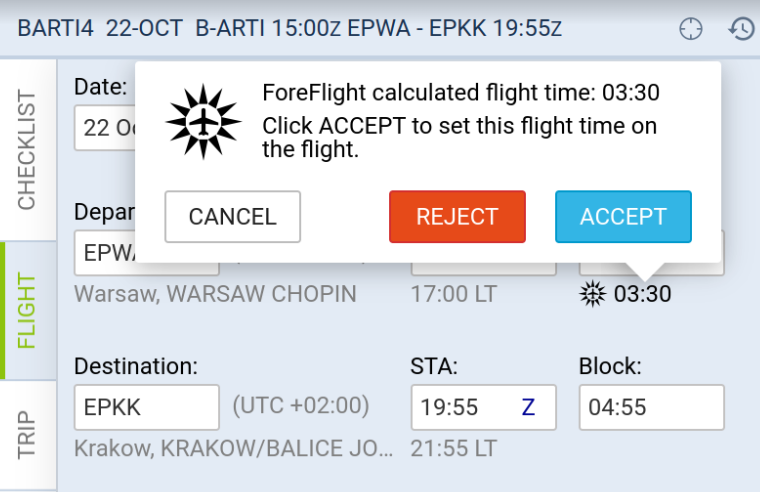

7. Tick the ‘Auto Update Flight Time’ checkbox if you wish to get the flight time in Leon updated each time it is changed in ForeFlight

8. Tick the ‘Auto Update Fuel’ if the fuel values should be downloaded from ForeFlight to the ‘Fuel’ checklist item. Data will be populated according to the following scheme: taxiFuel = Taxi fuel, flightFuel = Burn fuel, fuelToDestination = Trip fuel, contingencyFuel = Contingency fuel, totalFuel = Block fuel, flightFuel + alternateFuel + reserveFuel + contingencyFuel = MRF

9. Tick the ‘Update checklist item Fuel status’ if the status of the ‘FUEL’ checklist item in the OPS checklist should change to ‘?’ when the fuel values are updated from ForeFlight

10. Trip statuses - here you can define which statuses of the Trip should be sent to the integration. This will work only with ‘Auto send’ mode enabled

11. Send Flight No - if selected, the flight number will be sent to ForeFlight

12. Save the settings

If the ‘Auto-send’ is not selected, flights are sent to ForeFlight upon saving them in Leon and should be sent manually.

How it works

Leon sends the flights to ForeFlight software, where they can be processed further.

The flights are being sent every 5 minutes. Leon sends the schedule for the selected number of days in advance.

The following details are forwarded to ForeFlight: Flight no., ACFT Reg., STD, STA, ADEP, ADES, Number of PAX, PAX category (Male, Female, Child, Infant), flight type (Default, Positioning, PAX), Status of the Flight (Planned, Canceled), flight Crew and block fuel.

In case Flight Time is modified in ForeFlight, Leon will not update it automatically - the user must accept the FT modification manually by accepting the FT change in the OPS section.

Crew are recognised in ForeFlight initially by the crew code and then by the email address (work email address in Leon). We send the following positions to ForeFlight: PIC, SIC, CA (FA1 in Leon), and the remaining Crew in Leon are sent as ‘Other’ in ForeFlight.

The aircraft is matched by the aircraft registration. The hyphens in the registration are removed.

Flights deleted in Leon will update the status in ForeFlight to deleted.

Sending documents to CrewBriefing in Foreflight option is also available in Leon. This option is available from the OPS section by right-clicking on the particular flight.

It is possible to send:

• ** one particular document** - by clicking on the ‘Foreflight icon’ next to the document

• ** batch of marked documents** - by marking the documents you would like to send and clicking on the ‘Foreflight icon’ in the document dropdown menu next to the OPS or SALES section.

For more information and technical guidance, visit their website: https://foreflight.com/

Fuelworx from Flightworx

Fuelworx fuel portal from Flightworx gives instant access to fuel pricing at any time, anywhere in the world with a simple click of a button.

As leading aeroplane and aircraft fuel suppliers, Fuelworx offers an advanced portal that ensures Operators can instantly generate a quote for various aviation fuel types.

Fuelworx collaborate with top aviation fuel distributors to ensure Operators receive the most competitive prices.

How to integrate

The integration is quite simple.

Contact Fuelworx to receive an API Key.

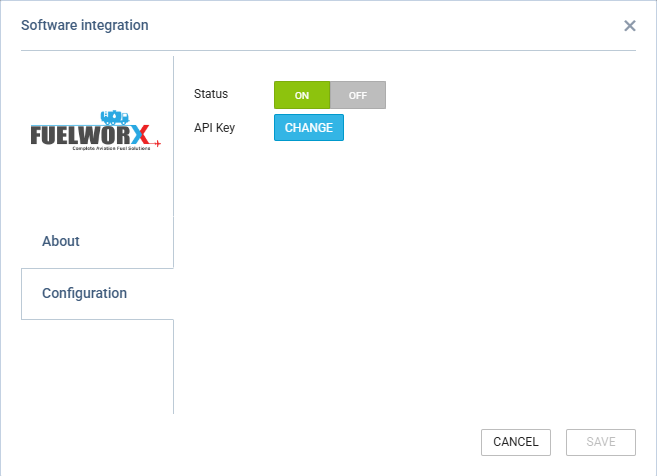

Once the API Key is received, insert it in the ’Fuelworx configuration and save the settings.

How it works

Once the integration is enabled:

• The price will appear with the supplier name Fuelworx.

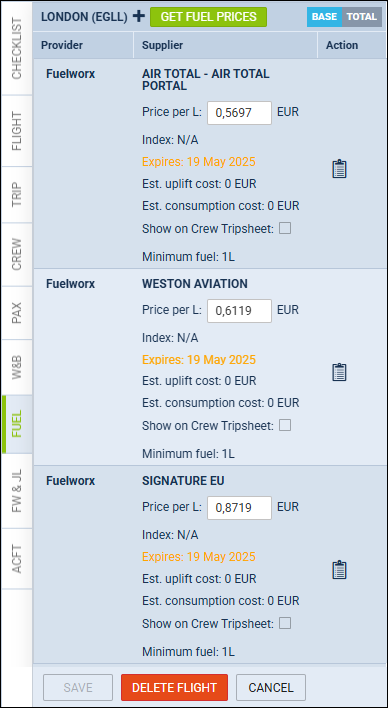

• Fuel prices from this source will be shown in the OPS -> ‘Fuel’ tab on a flight, upon clicking on the



  button

• Default unit/price for Fuelworx is USD/USGAL

• ‘Flightworx’ fuel upload will be removed from the OPS > ‘Fuel Prices’ section

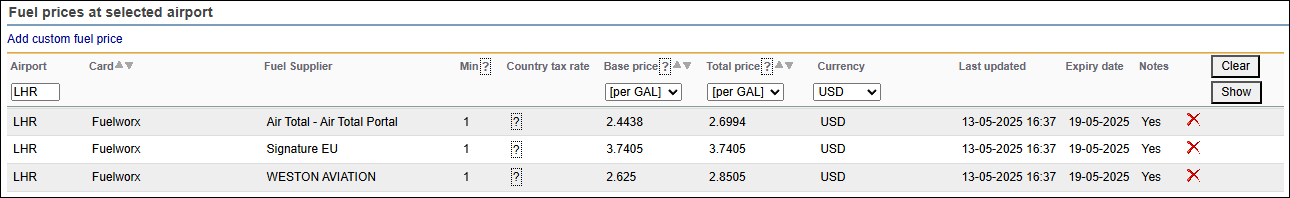

• ‘Fuelworx’ fuel prices will appear in the OPS > ‘Fuel Prices’ section if applicable to the searched airport, as per the screenshot below

GetJet

GetJet allows members to search for a private/business jet flight. To become a member you need to fill in a short request-to-join-form on GetJet website (https://www.getjet.com/en/join). Your personal login and password will admit you to the member area.

How it works

The integration allows exporting Schedule and Services (aircraft availability and empty legs) to GetJet.

How to integrate

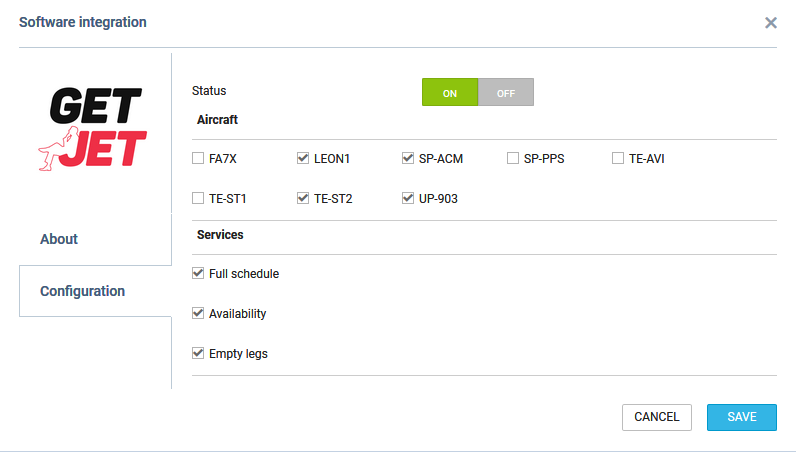

Go to section Settings > Integration - setting up an integration with GetJet can be done in two easy steps:

1. To activate the integration switch the status to ON.

2. Choose the aircraft registration that you would like to forward the Schedule and Services for (marking the ‘Empty Legs’ checkbox is mandatory).

Once it’s done click SAVE to save the settings.

JETEX

JETEX is a global leader in executive aviation services. The company delivers highly customized trip support solutions to an elite clientele worldwide. Their services include FBOs, international trip planning, aircraft fueling, ground handling, and bespoke concierge services.

With Jetex, you can be assured of a seamless travel experience. Their extensive network of facilities in airports around the world ensures you receive a full spectrum of trip support services at the location of your choice.

For more information about JETEX please visit: JETEX website

How to integrate

Please contact nkontrol@jetex.com for further information.

How it works

The integration allows Leon users to send full-service requests and receive status updates as well as briefings from Jetex directly through Leon’s user interface. Thus eliminating e-mail and any other means of communication. This innovative integration comes at no additional cost to the customer.

FlightKeys

FlightKeys is an Austria-based global flight planning service provider. It was founded in April 2015 by a team of passionate and high-profile aviation experts with very specific knowledge and long-term experience in the field of flight planning & optimisation.

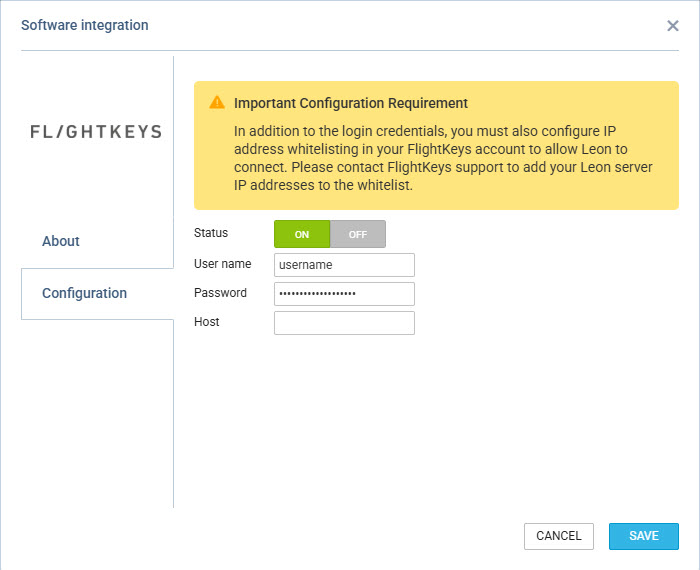

How to integrate

Integration credentials are provided by FlightKeys.

In addition to the login credentials, it is also required to configure IP address whitelisting in the FlightKeys account to allow Leon to connect. The operator must contact FlightKeys support to add your Leon server IP addresses to the whitelist.

IP addresses can be obtained by contacting Leon Support via the Customer Portal.

How it works

Leon automatically sends the flight details to FlightKeys. The flight details include the schedule, aircraft registration, PAX, and the assigned crew.

The details are sent every hour.

Leon will include the schedules for 14 days ahead from NOW.

L3Harris

L3Harris provides flight data analysis incorporating Flight Data Monitoring (FDM) and Flight Operations Quality Assurance (FOQA).

For more information about L3Harris please visit: L3Harris website

How to integrate

In Settings -> Add-ons find L3Harris integration, switch the status to ‘ON’, enter the integration’s login and password, and save the changes.

How it works

Leon sends past flights’ Journey Log data to L3Harris as Flight Records, thus entering the data manually in L3Harris is not required. Flight Records sent to L3Harris can be related to flight data manually downloaded from the flight data recorder and uploaded to L3Harris.

The data is sent to L3Harris every 60 minutes and contains all JLs changed since the last submission, but not older than 3 months. The status of sending the data can be checked in the Report Wizard, scope ‘Flight’. The status meaning is:

• Inserted - flight sent for the first time

• Waiting for resubmission - the flight was changed after it was sent to L3Harris

• Updated - when it was resent after the update

• Not inserted - when the flight was not sent yet

Leon Marketplace

Leon Marketplace allows flights to be sold and purchased within Leon.

How to integrate

To integrate with Leon Marketplace, switch the integration to ON in the the Configuration Panel and select any of the additional options:

• Automatically reject unanswered quotes - accepting requests in Leon will automatically reject unanswered quotes in Marketplace

• Send quote ferry flights - depending on the setting, ferry legs are sent (ticked) or not sent (unticked) to Marketplace when accepting the quote from Leon

• Show my fleet offers grouped by aircraft type - This feature is ideal when the Operator would like to promote an aircraft type rather than a specific tail number:

  • In Leon Marketplace - Clients will see the lowest available price for the aircraft type, along with the corresponding aircraft registration.

  • In the Leon Sales Panel - Once a client submits a quote request, quotes will be automatically generated for the registrations of the lowest-priced aircraft of each selected type. During the quoting process, you can manually offer a different aircraft if it is more suitable.

• Reposition aircraft to homebase after [h] - value inserted in this field indicates after how many hours the aircraft will be visible at Home Base

• Pricing Mode - based on this setting, the search for available aircraft works as follows:

  • Fixed base – the distance ratio is calculated relative to the aircraft’s base.

  • Floating base – the distance ratio is calculated relative to the last known location with respect to the ADEP of the first RFQ leg.

  • Use Aircraft Setting – this is a default setting and applies the aircraft’s own setting.

  This setting does not affect positioning generation or pricing. For the Floating base defined in the aircraft settings, the hour values entered there do not matter.

• Aircraft - selection of aircraft included in the Marketplace

  • Dimmed registration indicates that no default Aircraft/Airport Fees were connected to the aircraft in the Fleet setup

• Message copy recipients - Select internal email addresses to receive copies of all messages sent and received to and from buyers and operators from the sales module. Only mailboxes previously added to the system can be used.

  • Include assignee - possibility to include the request assignee in the message recipients list

• Buyer list - configuration of the list of buyers that can see your operator aircraft. It gives a possibility to include all the buyers (ALL), certain selected buyers (ALLOW), or exclude selected buyers (DENY) from the requester list

Additionally, the Operator/Broker can insert additional information which will be visible when a Client requests a trip in the Profile tab

It allows inserting the following information

• Upload logo option - possibility to upload the logo

• Description - text field that allows inserting more information about the Operator/Broker

• Contact details - text field that allows inserting contact details

• Argus rating - is a safety rating system for business aviation operators (charter/private aviation). It is widely used in the U.S. and internationally by brokers, charter companies, and corporate clients to assess the safety level of an operator. The dropdown with the following options:

  • Registered - the operator is listed in the ARGUS database

  • Gold - the operator meets enhanced safety criteria

  • Gold Plus

  • Platinum - the highest level, granted after a comprehensive operational safety audit

  • Platinum Elite - indicates maintaining the highest rating for multiple consecutive years

• Wyvern rating - Similar program to ARGUS. The program helps determine whether an operator operates safely and in accordance with industry best practices. The dropdown with the following options:

  • Registered - the operator is listed in the WYVERN system database

  • Wingman - the operator has successfully completed a comprehensive safety audit conducted by WYVERN

  • Wingman Pro - a higher-level program focused on continuous safety monitoring and advanced operational standards

How it works

It allows Leon Clients to search for flights and empty legs within Leon Clients who have also activated Leon Marketplace.

The process is explained here.

Marketplaces

It is now possible to integrate with Marketplaces in Settings > Add-ons panel, rather than requesting such integration via Leon Support.

The list of available Marketplaces includes AviMall, Charterpad, Chatch-a-Jet, EnterJet, ExecFlyer, FlightPartner, GetJet, JetClass, Jettly, Jettogether, Leon, Privatefly, Returnjet, Victor and VOO.

Apart from confirmed flights, it is also possible to send the ‘Opportunity’ type of flights. More information about ‘Opportunity’ can be found here

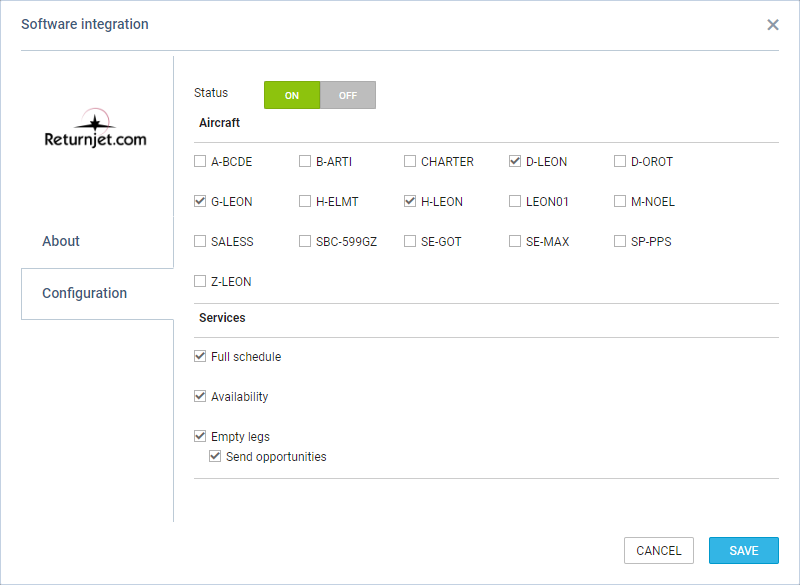

How to integrate

The integration process is quite simple:

1. Go to the ‘Configuration’ tab

2. Switch ‘Status’ to ON

3. Choose the Aircraft registrations you would like to forward the data for

4. Choose ‘Services’ you would like to use:

   • ‘Full schedule’ - full Schedule forwarded including Flights (PAX, zero-PAX and empty legs), Reservations and Maintenance

   • ‘Availability’ - information on future aircraft availability and flights that are marked as ‘empty’

   • ‘Empty legs’ - forwards only empty legs to a Marketplace

5. Click ‘SAVE’ to save changes

Leon will start sending the relevant data to the Marketplace immediately after saving the settings.

MARS

MARS (My Aircraft Reporting System) supports aircraft owners by providing them with modern tools for monitoring, cost management and reporting. Aircraft owners using MARS get a microsite for their particular aircraft, and also the ability to load and store all documents and invoices. Moreover, MARS is the only aviation software on the market, which supplies aircraft owners with one hub where they can access their financial records and flight activity.

Integration between MARS and Leon Software is very straightforward. The information is linked via an API from any flight activity software like Leon and any financial software for example: Quick Books).

The benefits that exist from any client using MARS and Leon are numerous. Not only are they able to get excellent data from Leon, but MARS brings together the pertinent data from Leon, and automatically creates reports that can be viewed, to give the owners an update on anything they could need to see regarding their aircraft. From where their aircraft has been, hours flown in a particular month, whether the usage was Owner or Charter, and full financial data as well.

They are also able to check the MARS calendar and find the availability of their aircraft at the touch of their fingertips, and as a brand new feature, clients can now reserve their aircraft right on the calendar, sending an email directly to their management company, letting them know when and where their aircraft will be travelling!

For more information please visit http://marsreportingsystem.com/about.html

MIRAI

Payment system MiraiPay is a part of the one-click private jet booking service ‘Mirai Flights’ focused on instant pricing to the clients. With the help of the MiraiPay service, you can provide your customers with the opportunity to pay for charter flights with several cryptocurrencies.

How to integrate

In order to integrate with MiraiPay you need to fill up the “Configuration” or contact the Mirai Flights support at sales@mirai.flights and request API Token details. Once you have it, switch the status to ON, insert the provided integration details and save the changes. Once saved, you can start the transaction operations in cryptocurrencies.

How it works

1. Set a payment link in the ‘SALES’ module. In the quote’s edition page, click the button INVOICE and switch to BTC.

Then click the blue button to create the order & payment in ‘MIRAI’.

2. Customers pay the orders in Bitcoin cryptocurrency.

3. The settlement airline company payments are made in EUR.

4. The transaction amount could be up to 300,000 EUR - lack of chargebacks.

MyHandling

MyHandling is the business aviation planning and management software of choice for airports and FBOs around the globe.

Integration of MyHandling with Leon allows you to implement the process of easily and efficiently sending and managing Handling Requests.

To integrate Leon with MyHandling facility, existing customers have to follow two easy steps:

• Contact MyHandling Support at [[contact@myhandling.com]] in order to obtain the identifier required for integration

• Once the identifier is received, click on the 'ENABLE' button, and change the status to 'ON'. Then, type this identifier into the GUID field and press SAVE button to finish the integration.

Airports using MyHandling do not receive a standard email to inbox. Instead, they use MyHandling application that stores every handling request sent.

More information on how MyHandling works within Leon can be found here.

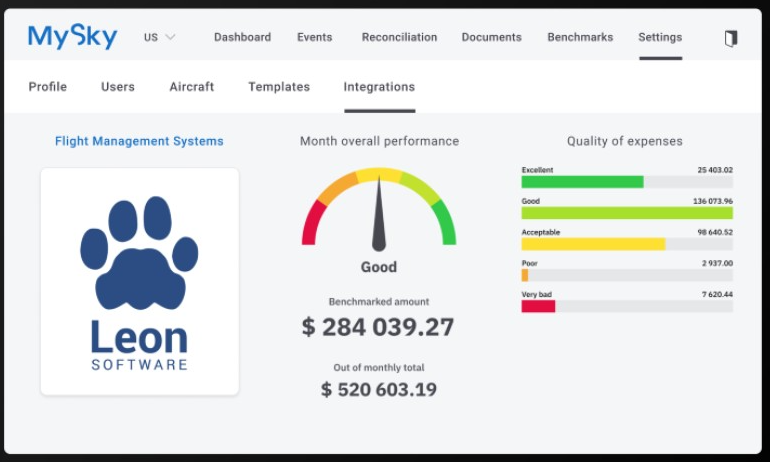

MySky

MySky was launched in 2015 as an online audit system. Since then, the company has migrated into a full spend management platform while serving the needs of many aviation industry stakeholders; such as jet owners, operators and consultants. They now serve hundreds of aircraft worldwide in a highly competitive and rewarding business environment. They operate as an independent third-party player and offer one of the largest cost databases in the industry.

MySky combines its independence with tech and data to provide an unmatched level of both operational and back-office efficiency for clients. The features that the system has built-in include automation of digital documentation and the verification of invoices and receipts. Additionally, the use of big data enables accurate price benchmarking when compared to the market averages.

The main advantage of a system like MySky is that AI-power learning enables companies to improve their operations while running at full throttle.

Three main aspects of the spend management value proposition are:

Data administration: automating time-consuming tasks, monitoring and administration of data within businesses, with a reduction of admin costs; Automated cost accounting: clients can be more efficient in their cost management; Benchmarking: making use of a unique database, each cost is put into perspective. This allows clients to have more power and proactively control their operational budget. In a nutshell, AI optimizes time-consuming tasks and eliminates errors. Two very cost-intensive and important functions within spend management.

MySky capabilities include calculating a flight quotation.

For the integration to work API key needs to be generated from Leon and passed on to MySky technical support. MySky will use the key to switch the integration ON.

Please find more information on MySky’s website: https://mysky.com/about

N-Flight Planning from NavBlue

N-Flight Planning is an award-winning flight planning solution with a proven record of being one of the safest and most cost-effective flight planning applications on the market.

The scalable solutions provided by N-Flight Planning will meet the needs of your operations no matter the size or complexity.

More details can be found here.

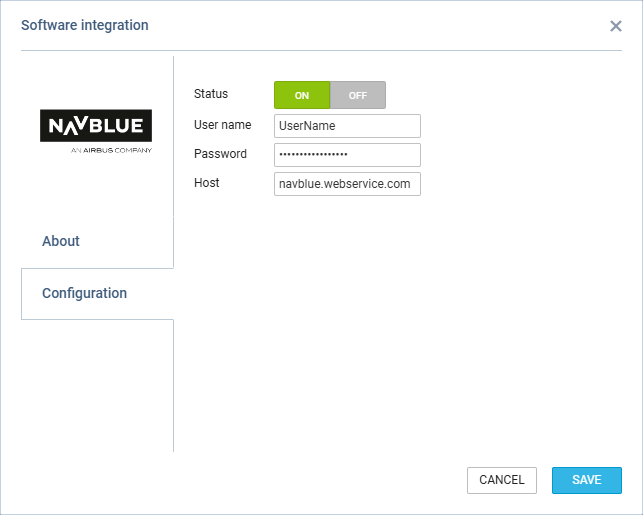

How to integrate

Contact NavBlue Administrator to receive the credentials: Username, Password, and Host.

Insert the data in the configuration Panel and save.

How it works

Once integrated, Leon starts sending the flight details to N-Flight Planning, including:

• schedule

• aircraft

• schedule type

• flight rules

• trip number

• crew assigned to the flight

Leon automatically sends future flights that are planned within 48h from ‘NOW’

Flights are sent every hour.

PPS

In this section, you can set up an integration with PPS. PPS is a pc-based Flight Planning software for private and commercial business aircraft operators, regional/charter/cargo/national airlines as well as military/utility operators.

The PPS Flight Planning system gives a dynamic data feed of schedule changes, aircraft changes, load data etc.

Leon sends the following data to PPS:

• Aircraft registration,

• Flight number,

• ICAO flight type (S/N/G/M/X),

• ADEP,

• ADES,

• ALTN,

• ALTN2,

• STD,

• STA,

• PAX number,

• Male (number),

• Female (number),

• Child (number),

• Infant (number),

• Cargo (mass of cargo),

• Ref Number (a reference number that the scheduling software can use as its internal key to the flight).

Crew positions which are sent from Leon to PPS are (Leon position = PPS position):

• PIC by default CPT = PIC

• SIC by default FO = FO

• FA1 = CA1

• FA2 = CA2

• FA3 = CA3

• FA4 = CA4

• FA5 = CA5

• FA6 = CA6

PIC and SIC are determined based on the crew position, and PIC selection in the crew list on the flight. By default, the CPT is the PIC. However, if someone with a lower position is assigned as PIC, the CPT will be considered to be the SIC, thus transferred to PPS as FO.

All other crew positions in Leon can not be sent to PPS due to PPS’s API being unable to recognize them on their side.

Integration between PPS and Leon comes down to feeding schedules as well as some basic data such as cargo, number of PAX, and Sex of PAX (if filled in in Phonebook) from Leon to PPS. The advantage of being integrated is that you do not have to re-enter the schedule in PPS.

Two details are transferred back to Leon:

• FPL status in AMEXSY will be shown OPS checklist, item ‘PPS CFMU’

• CB status from PPS will be shown in the OPS checklist, item ‘PPS Crew Briefing’. The status can be ‘None’ or ‘Uploaded’

Before enabling this option you need to contact support@airsupport.dk and request a special login, password and PPS name for integration with Leon, which then needs to be inserted into Leon. Please make sure that in PPS8 Settings Manager, in the tab ‘Corporate Data’, the checkbox Use new web service is enabled.

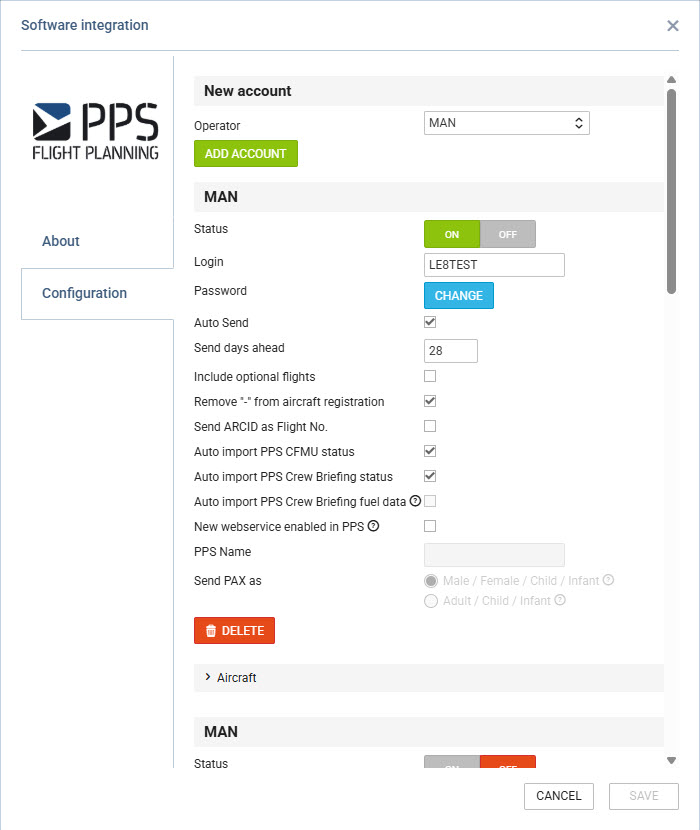

Click an icon ENABLE and once a pop-up window shows up click your operator code. Insert previously received login & password (CHANGE button) and save. If you don‘t want flights to be sent out automatically to PPS unmark a checkbox ’Auto Send’. Otherwise, Leon will forward the flights to PPS every 5 minutes.

You can decide if you want all aircraft to be sent to PPS or only some particular ones - open a section ‘Aircraft’ and unmark tails which should not be sent to PPS.

Sending documents to CrewBriefing in PPS option is also available in Leon - you can read about it in THIS chapter of Leon manual.

Prodefis

prodefis is a German aviation training management platform trusted by 50+ airlines worldwide, including Lufthansa Group, TUI Group, Cathay Pacific, and Qantas Group. It specializes in electronic qualification management, training records, and crew compliance tracking.

How the Integration Works

Leon integrates with prodefis in a one-way synchronization — Leon pulls data from prodefis and imports it into crew profiles automatically. The following crew document types are synchronized:

Once synchronized, this data is visible in Leon under the respective crew member's profile and is taken into account by Leon's document validity warnings and crew assignment logic.

Enabling the Integration

The prodefis integration is not self-service. To enable it for your operator account, contact Leon Support:

Q5 Systems

Q5 Systems has been developing quality, security, and environmental, health and safety software since the early 1990s to help professionals better manage the complexity of an ever-changing business environment and the inherent risks associated with everyday operations.

Q5 offers a suite of safety software products to enable optimal safety compliance including audit and inspection management, incident management, corrective actions, risk management, project observation management and custom development.

For more information visit Q5 Systems website.

How to integrate

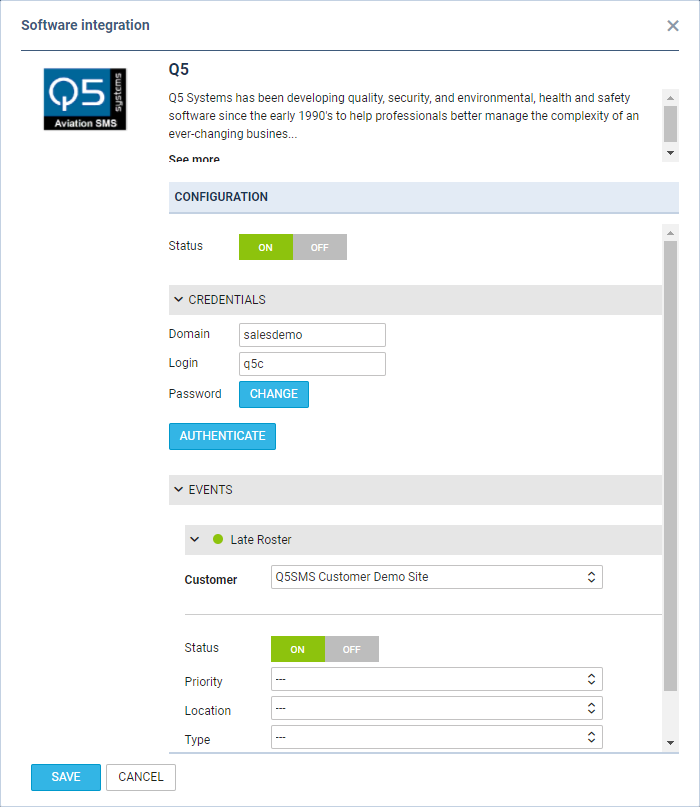

In order to integrate Q5 with Leon, you need to switch the status to ON. Insert your domain name in the Q5. Insert your Q5 login details in the CREDENTIALS section. Q5 login details are the ones that you use to access Q5 System. Press the AUTHENTICATE button to save changes.

How to configure

Once you have integrated you need to configure the available ‘EVENTS’. There is a possibility of adding further ‘Events’ in the future.

The only currently available event is a ‘Late Roster’ warning.

Once you click on the ‘Late Roster it will open a dropdown list with an option to choose Customer. ’Customer’ is a Department within Q5 System you would like to send the warning to.

Switch the status to ‘ON’ and set the remaining items: Priority, Location, Type, Category and Subcategory. These items are uploaded from Q5 and can be added only in Q5. This is to correctly map the event from Leon in the Q5 System.

If you want to update the list of items from Q5 in Leon simply go to the Add-ons section, click on Q5 integration and the list of items should refresh. The list of items you see in each following dropdown is a result of the item chosen in the previous dropdown.

Threshold is set in Leon and means the number of days from ‘Now’ onwards that Leon should search for a security event. More information is in the ‘How it works’ section.

Publishing of whole months checkbox is active, you should publish the roster for a whole month not later than your threshold days in advance. For example, if the threshold is set to 14 days, and you are to publish the roster for the full month of April, this roster has to be published by the 17th of March.

How it works

Currently, the integration allows recording any security-related events, such as overdue publishing of the roster, in the Security Management System that is Q5. Depending on the configuration, if such an event occurs in Leon, the information is automatically forwarded to Q5 System.

Example

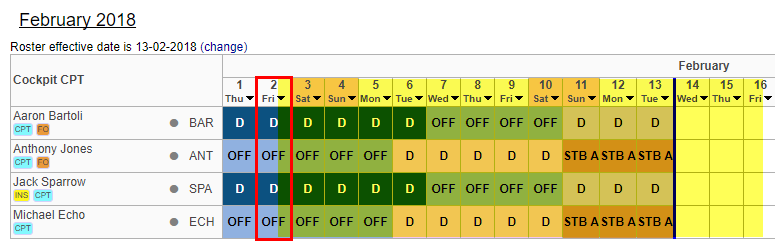

The screenshot will help you to understand when the Duty Roster event is reported to Q5 systems.

Let‘s assume that 2nd February at 15:00 is our ’NOW’. Marked within the red frame in the screenshot.

The ‘Roster effective date’ has been set to 13th February. This is the dark blue line in the screenshot.

In the integration settings, we have inserted a 14-day ‘Threshold’. The field is marked yellow in the screenshot.

The above values mean that the ‘Roster effective date’ is currently placed within the ‘Threshold’ (the 2nd of February at 15:00 + 14 days is the 16th of February at 14:59).

Since the ‘Roster effective date’ is within the ‘Threshold’ period, if we now move the ‘Roster effective date’ to any other date, the event will be reported within the Q5 system.

For the Q5 notification purpose, Leon will always check when the effective date has been moved, considering the ‘NOW’ and the ‘Threshold’.

SAFE - FRMSc

SAFE is a computer program that includes a suite of algorithms for evaluating a range of factors influencing alertness in aircrews.

SAFE is very easy to use and will quickly identify schedules and individual pilot duties with high fatigue scores.

How it works

The integration allows pilots’ FTL duty, STB and Reserve-related data to be sent automatically, subject to configuration, or manually from Leon to SAFE.

The frequency of sending the data automatically to FRMSc SAFE can be set within the integration configuration.

Once the data is uploaded to SAFE it undergoes an immediate fatigue and alertness evaluation. You can also generate the CSV file. Generated files can be used in SAFE

How to integrate

To integrate with SAFE, you must get a license to access the SAFE model.

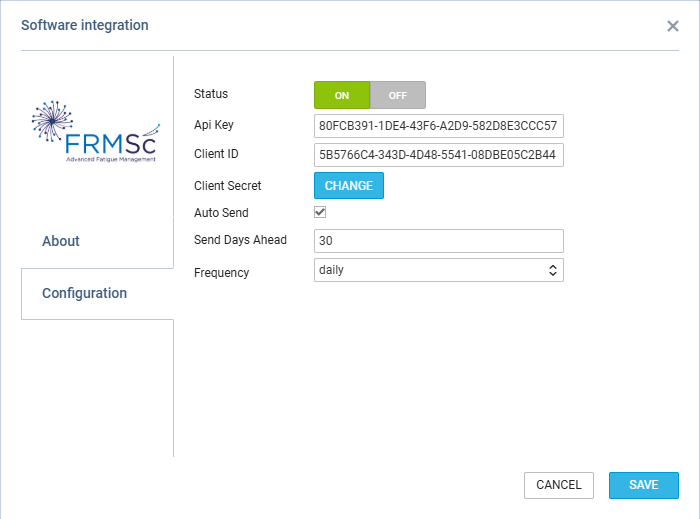

In SAFE, you need to go to the ‘Settings’ section > API where the following integration data is available:

• API Key

• Client ID

• Client Secret - this needs to be generated in FRMSc > API section

• Auto Send - option allowing to send the data automatically to FRMSc:

  • Send Days Ahead - setting the number for how many days ahead the schedules should be sent. This value includes ‘Today’ and allows for the number of days between 1 and 60

  • Frequency - possibility to select the frequency as per the below:

    • Hourly - data is sent every hour at 45 minutes past an hour, for example 00:45UTC, 01:45UTC, 02:45UTC, etc

    • Daily - data is sent on a daily basis at 03:35UTC each day

In the ‘Add-ons’ > FRMSc SAFE configuration section switch the status to ‘ON’, insert all the required integration data and save the settings to complete the integration.

Once the integration is completed successfully, Leon will start sending the data to SAFE.

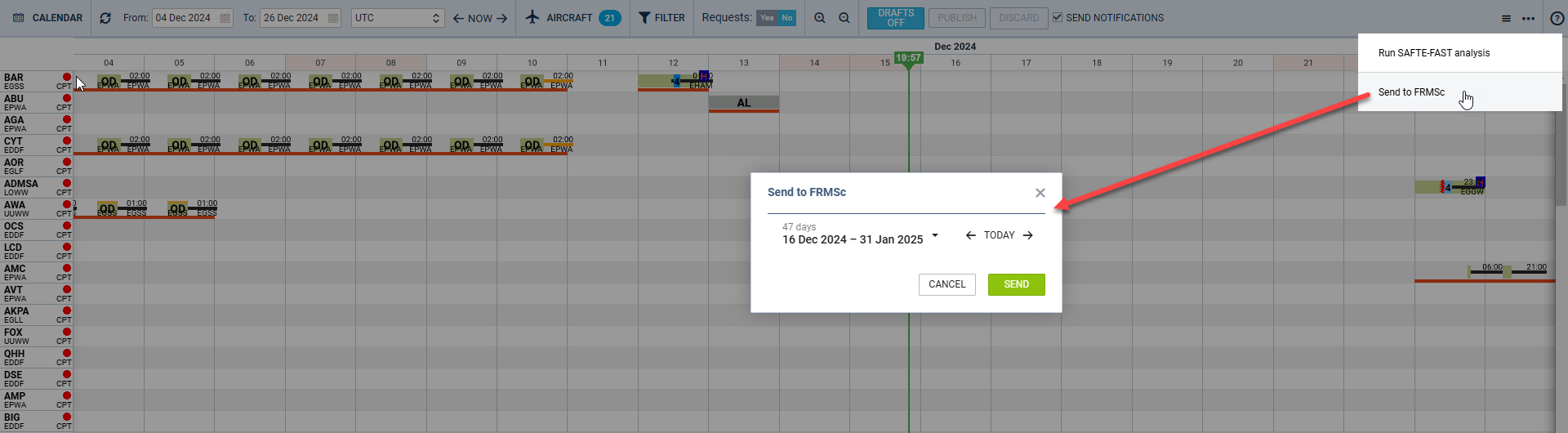

Manual upload to SAFE

It is also possible to send the rostered data to FRMCs SAFE manually in the CREW TIMELINE.

To do it you need to:

1. Click on the



   icon located in the top-right corner in CREW TIMELINE

2. Select the ‘Send to FRMSc’ option from the list

3. Select the date range in the ‘Send to FRMSc’ pop-up window

4. Press ‘SEND’ to send the rosters to FRMSc SAFE

The rosters should then be uploaded to FRMSc SAFE.

SAFE - FRMSc (Legacy)

SAFE is a computer program that includes a suite of algorithms that allow a range of factors influencing alertness in aircrews to be evaluated.

SAFE is very easy to use and will quickly identify schedules and individual pilot duties with high fatigue scores.

How it works

The integration allows sending Pilots data from Leon to SAFE in one easy click.

Go to SAFE roster export report, where you can send the data from Leon to SAFE. Once the data is uploaded to SAFE it undergoes immediate fatigue and alertness evaluation.

You can also generate the CSV file. The generated file can be used and uploaded in SAFE software.

How to integrate

In order to integrate with SAFE, you need to get a license to access the SAFE model.

In SAFE, you will need to point the data you create at your own endpoint of SAFE. An endpoint is your own SAFE website address e.g. https://client.frmsc.com where “client” is the client`s name.

Once you have received the endpoint (client), login and password from FRMSc, you need to log in to SAFE.

In the top-right corner of the main User Panel in SAFE you will see API icon - . Click on the icon to see (and copy) the API Key (displayed in the top-left corner of the API page). The API Key is an individual key for each Client and will be required to complete the integration (details below).

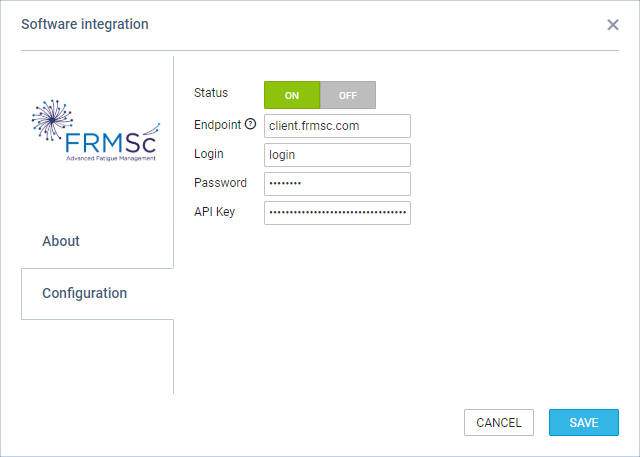

Go to the ‘Add-ons’ section in Leon, FRMSc SAFE integration and insert the endpoint, login, password and API Key in the ‘CONFIGURATION’ section.

Saving the changes will complete the integration.

SAFTE-FAST

About SAFTE-FAST

SAFTE-FAST is the validated and widely used fatigue model used to assess fatigue for an entire workforce.

In aviation, it is the same model used by the US Federal Aviation Administration suitable for assessment of pairings, planned rosters, and as-flown rosters.

SAFTE-FAST provides an integrated and science-based process for analysis of fatigue risk in an entire workforce or in individual cases, identifying fatigue factors that inform mitigation decisions.

SAFTE-FAST provides the most trustworthy predictions of crew performance that maximize the benefits of fatigue risk management, improve safety, minimize errors and incidents, improve morale, and enhance productivity.

More information about SAFTE-FAST can be found here.

How to integrate Leon with SAFTE-FAST

Integration with SAFTE-FAST is available in the ‘Settings’ > ‘Add-ons’ section > ‘Risk Management’ subsection.

In order to integrate with SAFTE-FAST you need to contact the company at info@saftefast.com and require integration with Leon. SAFTE-FAST then contacts Leon and Leon switches the integration to ‘ON’.

How the integration works

Once the integration is activated, the SAFTE-FAST option will be available in the ’Crew Timeline view.

There are 2 ways in which the crew data can be analyzed:

• Per single crew member

• For all crew members

The color red on the Crew Timeline can signify either a Flight Time Limitation (FTL) violation or a SAFTE-FAST threshold exceedance. To identify the specific alert, right-click on the duty. If no FTL alert is shown, it indicates a SAFTE-FAST alert.

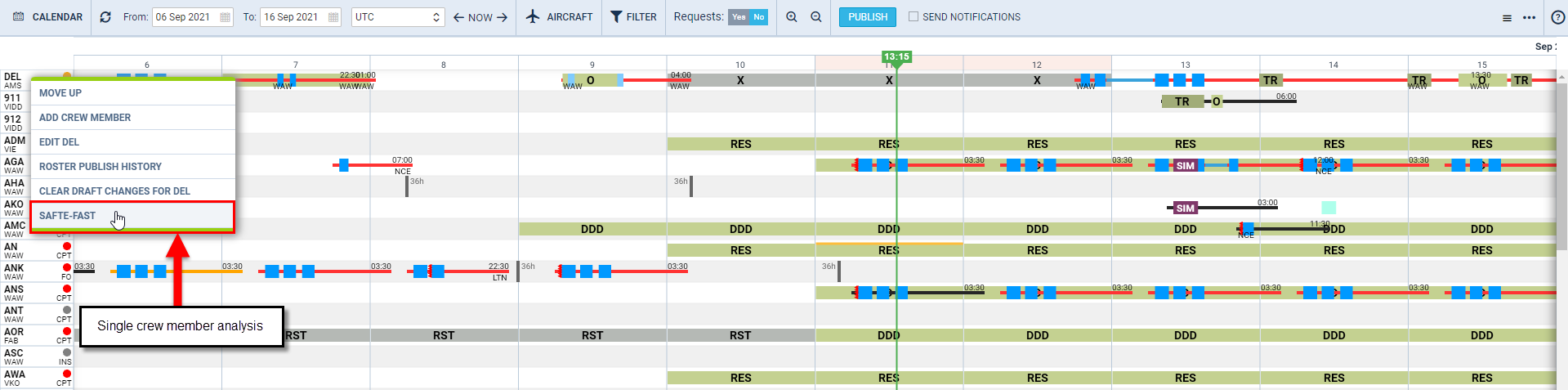

Analyzing data per single crew member

In order to receive a fatigue score for a single crew the below steps need to be followed:

1. Right-clicking the mouse on the crew code in the Crew Timeline

2. Select the ‘SAFTE-FAST’ option in the dropdown menu

Selecting the ‘SAFTE-FAST’ option for a particular crew member will result in SAFTE-FAST analyzing the crew fatigue in a pop-up window in Crew Timeline.

Initially, ’Waiting for the server to download proper data from SAFTE-FAST message will appear.

If there is no data in a given period, ‘Nothing to calculate for a user -USER CODE- in given time period’ message will appear.

After few moments, Leon will display the results from ‘SAFTE-FAST’ in the form of a table including:

• Effectiveness score on departure and arrival

• Reservoir score on departure and arrival

• Percent Below Criterion on a flight

The score brackets are as follows:

• Effectiveness

  •

    - indicates ‘Exceeded’ and applies to the values ≤65

  •

    - indicates ‘Warning’ and applies to the values >65 and ≤77

  •

    - indicates ‘Soft Warning’ and applies to the values >77 and ≤90

  •

    - indicates ‘Good’ and applies to the values >90

• Reservoir

  •

    - indicates ‘Exceeded’ and applies to the values ≤65

  •

    - indicates ‘Warning’ and applies to the values >65 and ≤75

  •

    - indicates ‘Soft Warning’ and applies to the values >75 and ≤90

  •

    - indicates ‘Good’ and applies to the values >90

• Percent

  • Exceeded for values >20

  • Warning for values > 10

  • Soft Warning for values > 1

`

The data is analyzed based on the flights, positionings, and duties, and for the flights and positionings within a timeframe selected in the Crew Timeline filter.

Analyzing data for all the crew members

It is also possible to monitor Crew fatigue in the Crew Timeline for all the crew members in a selected period of time.

In the main ‘Crew Timeline’ view, click on the icon located in the top-right corner of the page and select the ‘Run Safte-Fast analysis’ option.

information will appear indicating the initiation of the ‘SAFTE-FAST’ analysis.

Once the analysis has been performed, to show the level of Crew fatigue, Leon will highlight lines in either orange or red colour.

The orange The orange color of the line indicates:

Effectiveness ≤ 77

Reservoir ≤ 75

Percent below criterion › 10

The red The red color of the line indicates:

Effectiveness ≤ 65

Reservoir ≤ 65

Percent below criterion › 20

REPORT

You can generate a SAFTE-FAST Export report from the ‘Reports’ menu. This report is exported in CSV format, which can be imported into SAFTE-FAST standalone software solutions. You can create the report for an individual crewmember or for all crewmembers over any past period.

Scandlearn

Scandlearn is the ultimate all-in-one crew training solution for companies, organizations and authorities, of any size, including the ones in the aviation industry.

Scandlearn provides out-of-the-box tools which give Crew Managers functionality to manage all the training needs, channels, user management, training distributions, health checks, qualifications, and scheduling - all in one place.

For more information please visit: https://scandlearn.com

How to integrate

In order to integrate with Scandlearn, you need to have an active account at Scandlearn.

Once you have it, you need to contact support@scandlearn.com to obtain your ‘Client ID’ and the ‘Secret key’.

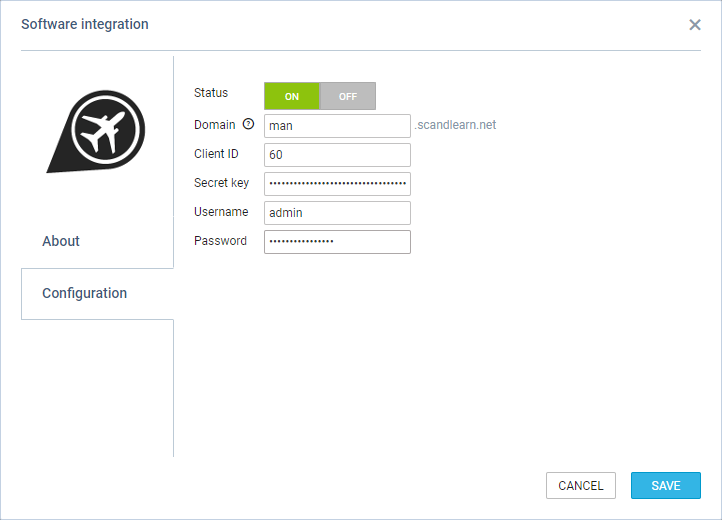

Go to the ‘Configuration’ section and switch the status to ON.

Domain is your Scandlearn domain, i.e. xxx.scandlearn.net. You only insert your equivalent to ‘xxx’ in the field.

Client ID and the Secret key are provided by Scandlearn.

Username and Password and the login details of the Admin in Scandlearn.

Click ‘SAVE’ to complete the integration.

How it works

The integration allows importing Crew Endorsement from Scandlearn to Leon.

Once the integration is completed, Leon will download the endorsements from Scandlearn. Leon will not replace existing Leon endorsements with the downloaded ones but will create additional records in the endorsements list.

Leon runs a script every 3h checking if there were any changes in Scandlearn:

• Changes to existing endorsements - any changes to matching endorsement in Scanlearn will update the expiry date of the same endorsement in Leon

• New endorsement in Scandlearn - if there is a new endorsement added in Scandlearn, Leon will update the relevant User(s) record with the new one

Clicking on the Scandlearn endorsement definition will open a pop-up window where you can select the order on the endorsements list as well as insert the required actions when endorsements are due to expire

In the Endorsements list as well as in the User profile, Scandlearn endorsements will display below the endorsements added in Leon.

Certificates and any other files are not imported from Scandlearn.

Users are matched by the crew email address in both systems.

SchedAero

SchedAero is a leading charter sales management system and is a wholly-owned subsidiary of Avinode Group. The integration allows for transferring confirmed/booked flights from SchedAero automatically to LEON, in one click. Thus eliminating the need to enter the same trip twice in both systems.

To integrate you need to follow 2 easy steps:

1. Contact sales@schedaero.com to receive the Authorization key. Authorization key is a sequence of letters, numbers and special signs SchedAero provides.

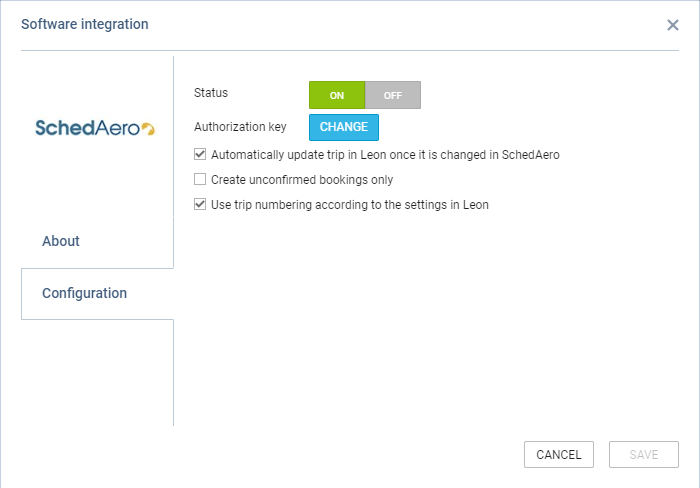

2. Open the integration window, switch Status to ‘ON’, insert the Authorization key and select the relevant additional settings:

   • Automatically update trip in Leon once it is changed in SchedAero - allows automatically updating the trips in Leon upon any changes in the connected trip in SchedAero

   • Create unconfirmed bookings only - any trips booked from SchedAero to Leon will be created in Leon as unconfirmed trips - Options

   • Use trip numbering according to the settings in Leon - allows assigning Leon trip number rather than the original SchedAero trip number upon booking the trip from SchedAero to Leon

3. Save changes

This completes the integration.

The process of sending Trips from SchedAero to Leon is straightforward:

1. Create and confirm quote in SchedAero.

2. Schedule the quote - once the quote is created, click “Schedule”. A pop-up window will open to schedule this quote. Once the quote is scheduled, the trip will be sent to Leon.

3. New flight in Leon - it takes anything between 30 seconds and 2 minutes for the SchedAero quote to appear as a Trip in Leon. This Trip will hold SchedAero quotation number.

Streamlane GOVlink

Streamlane offers a ready-to-use SaaS collaboration platform that orchestrates data exchange between border control agencies and international transport operators, taking into account security, data privacy and regulatory compliance.

For more information and technical guidance visit Streamlane website: https://streamlane.tech/contact

TAILLOG

TAILLOG app is a fully integrated EFB and flight progress tool containing the flight plan details, company documents, weather charts and NOTAMs. Automatically registering and reporting flight progress.

TAILLOG interfaces with pre- and post-flight systems and enables both automatic and manual control, supporting the calculation of abeam times, fuel consumption etc. Miscalculations and human errors are eliminated and time-consuming data management is minimized.

For more information please visit Blue Chap Group official website

How to integrate

The integration can be activated by sending an API Key to TAILLOG.

API Key can be generated in the section ‘API Keys’ of the Settings panel. The required items which need to be included are: Aircraft see, Airport, Contact see, Crew members, Empty leg see, Flight see, Flight watch edit, Flight watch see, Handling agents, Journey Log, Journey Log edit, Journey Log file see, Login, Operator.

Based on the API Key, TAILLOG will then establish an automated data exchange by using the Leon API and the TAILLOG API.

How it works

The data exchange will be executed at the time the client completes a flight log in the TAILLOG system. The flight log will be synchronized with the cloud server and activate the data exchange with the Leon system.

The data to exchange is selected by the client. Typically, the data is Block Off and Block On times, Take-Off and Landing times, key fuel parameters, a number of PAX and a number of landings.

TRAXXALL

Award-winning TRAXXALL is the most trusted aircraft maintenance tracking and parts inventory management solution available for private jets and helicopters. TRAXXALL is the choice of business aviation operators in 35 countries including Jet Linx — the third largest in North America — and OEMs like Textron Aviation, Airbus Helicopters, and Piaggio Aerospace.

TRAXXALL is the most advanced aircraft maintenance tracking and inventory management solution for business aviation on the market today. Its innovative, cloud-based system means TRAXXALL is more robust, secure, accurate and cost-effective than traditional legacy systems. TRAXXALL users can get access to their aircraft maintenance and inventory data from any PC, laptop or mobile device. For more information please visit www.traxxall.com

How to integrate

Please contact your dedicated Traxxall analyst. He/She will coordinate the integration on your aircraft and provide you with all the necessary information, including credentials: the Key (login) and the Secret (password) needed to activate the integration in Leon.

You may also submit your request by email to support@traxxall.com or by telephone (toll-free): +1 (844) 590-2742

The example of the credentials is presented below:

• Integration-Api-Key: 15cb1b87-a306-4431-8ecd-8faca56a23d7

• Integration-Api-Password (Secret): Zcp7CkGELDSaXSBsd3XuaXi0UaYuX2PRi4wwZr7GQvQ=

Once you have the credentials, you need to perform the following steps:

1. Go to ‘ADD-ONS’ section in Leon

2. Switch the Status to ‘ON’

3. Insert the credentials provided by the dedicated analyst or TRAXXALL support team

4. Select the aircraft you’d like to connect

5. Save the settings

How it works

The integration offers automatic TAH, and TAC updates for all aircraft and their main assembly parts (airframe, engines).

To make the integration work properly you need to insert the Aircraft serial number in Settings > Fleet.

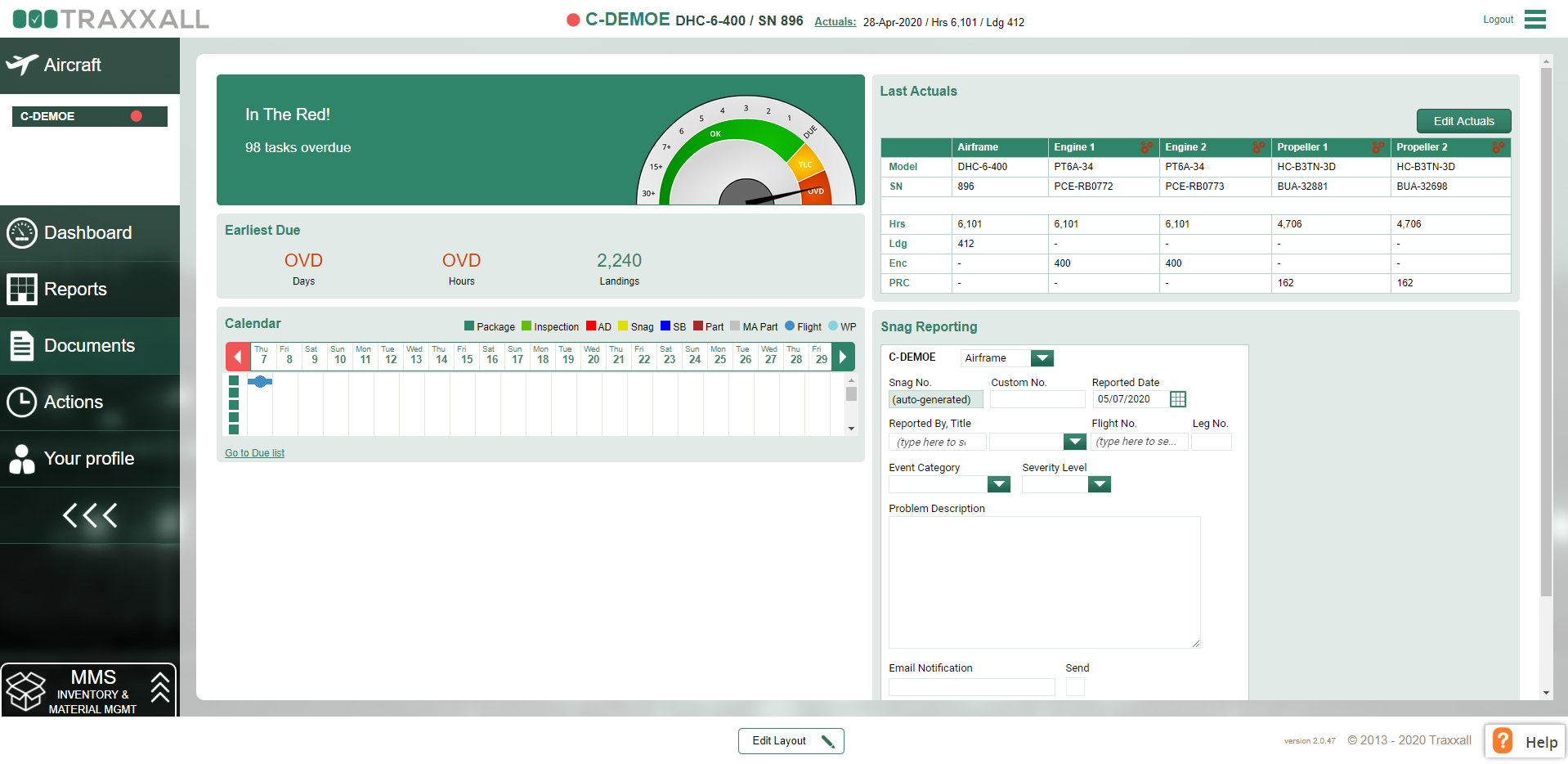

Then, set up the airframe & engine details in a section MX > Fleet. Click on a selected aircraft and go to tab CAM. Here, select Airframe ‘start date’ and insert TAH & TAC values. You can do the same for engines.

Leon synchronizes changes in planned flights and JL with TRAXXALL. TRAXXALL then recalculates aggregated TAH and TAC values in their system.

TRAXXALL integration works one way only from Leon to TRAXXALL.

TrustFlight Tech Log

The TrustFlight Tech Log offers intuitive workflows, and intelligent flight and maintenance data validation and can be fully integrated with your existing scheduling and maintenance systems. Gain a real-time view of your fleet status, reduce cost, and prevent delays.

Realize the power that digital records have to offer; transform your operation by eliminating transcription errors, and manual processes and automating away repetitive data entry:

• Gain an instant overview of your aircraft, their locations, and maintenance statuses

• Be alerted for issues across the fleet, in real-time, and resolve them quickly.

• Fully digital workflows for crew and maintenance, capturing vital information without mistakes.

Recognized by regulators globally

The Tech Log is in use across a variety of operations around the world, including everything from Airlines to Cargo, Charter, and Private Operators.

TrustFlight collection of template documentation, paired with our experienced team, makes gaining regulatory acceptance of the system straightforward. TrustFlight is also one of the only dedicated Electronic Tech Log providers to have gained acceptance by EASA through a letter of No Technical Objection (NTO) after extensive evaluation. We have customers operating under CAA (Isle of Man), CASA (Australia), FAA (United States), Transport Canada, CAA (United Kingdom), EASA, GCAA (UAE), UK CAA, San Marino, Transport Malta, and more!

Designed for operators, engineers, and pilots. Continuously evolving.

TrustFlight Tech Log has been designed in close cooperation with airlines, operators, pilots, and engineers, ensuring that it meets the needs of today’s businesses. We never stop improving though and are constantly making new features available to our customers such as:

• Enhanced User Interface and User Experience for intuitive navigation and easy training

• Intuitive defect processing including MEL deferrals, AOGs, and cabin items

• Configure your account to match your operations, with the possibility to export your data into your current PDF company templates

• Access and manage your aircraft fleet status as a back-end user on any browser

• Record journey, maintenance, and flight logs

• Receive notifications and records promptly upon trip close-out, discrepancies, maintenance activities, and more!

• Scan receipts and monitor fuel costs

• Quickly defer defects using our powerful embedded MEL option based on your current aircraft MELs.

• Work offline or online, from anywhere in the world. Or 36,000 ft above it.

For more information please visit https://www.trustflight.com/techlog/ or contact sales@trustflight.com.

How To Integrate

In order to integrate with the TrustFlight Tech Log, you need to have an active account with TrustFlight.

To create an account with the TrustFlight Tech Log contact sales@trustflight.com

Once you have it, you need to contact support@trustflight.com for the Leon integration to be enabled.

How it works

Below are the integration capabilities:

• Import the trips and flights from Leon to Tech Log

• Create and assign crew (PAX) from Leon to Tech Log

• Update Leon JL with completed flight data from Tech Log

Universal Aviation Training

Universal Aviation Training (UAT) offers a unique and state-of-the-art training system that is a combined product of technology and aviation expertise, all aimed to provide one high-end quality training infrastructure to assist airlines, ATOs and individual pilots with their training demands. The platform enables one to complete courses on an online or offline capability.

How to integrate

In order to integrate with UAT, the Operator has to have an active user in the UAT system.

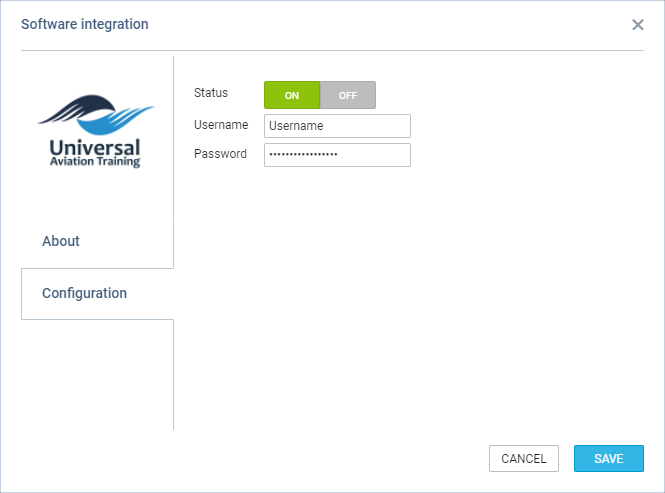

Simply switch the status to ‘ON’ and insert the login details in the Configuration section.

Leon should automatically start downloading the endorsements upon saving the integration credentials.

How it works

The integration allows importing Crew Endorsement from UAT to Leon.

Once the integration is completed, Leon will download the endorsements from UAT. Leon will not replace existing Leon endorsements with the downloaded ones but will create additional records in the endorsements list.

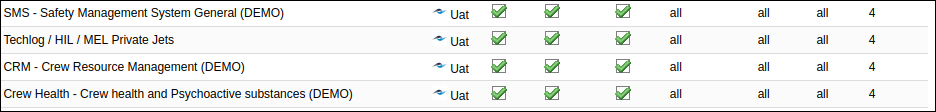

The endorsements from UAT will be indicated with the UAT logo:

• ‘Endorsements definitions’:

• User profile > ‘Endorsements’ tab:

Leon runs a script every 3h checking if there were any changes in UAT:

• Changes to existing endorsements - any changes to matching endorsements in UAT will update the expiry date of the same endorsement in Leon

• New endorsement in Scandlearn - if there is a new endorsement added in UAT, Leon will update the relevant User(s) record with the new one

In the Endorsements list as well as in the User profile, UAT endorsements will display below the endorsements added in Leon.

Users are matched by the crew work email address in both systems.

For more information please visit: https://www.e-uat.com/

uvGO

With uvGO you can plan, build and manage trips worldwide. uvGO helps to create and file flight plans for domestic, regional, and intercontinental routes.

It allows one to view routes on weather overlays, and perform advanced functions like runway analysis, weight and balance, ETOPS, FIR avoidance, GPS RAIM prediction and more.

It is available for iPad, iPhone and online. You have access to do-it-yourself trip planning resources, as well as complete mission coordination through your Universal® Trip Support Team.

For more information please visit: https://www.universalweather.com/

How to integrate

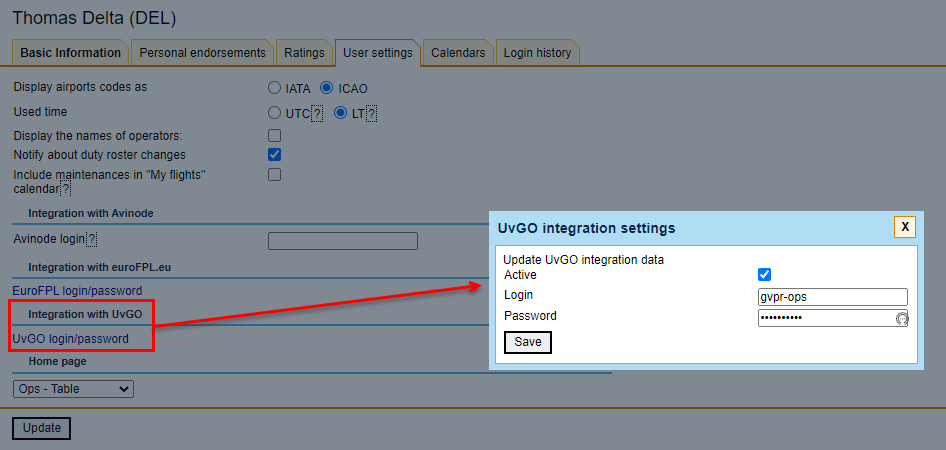

In order to integrate, go to User Profile > ‘User Settings’ tab and insert uvGO credentials in the ‘uvGO Integration Panel’ pop-up window. It appears upon clicking on the UvGO login/password link.

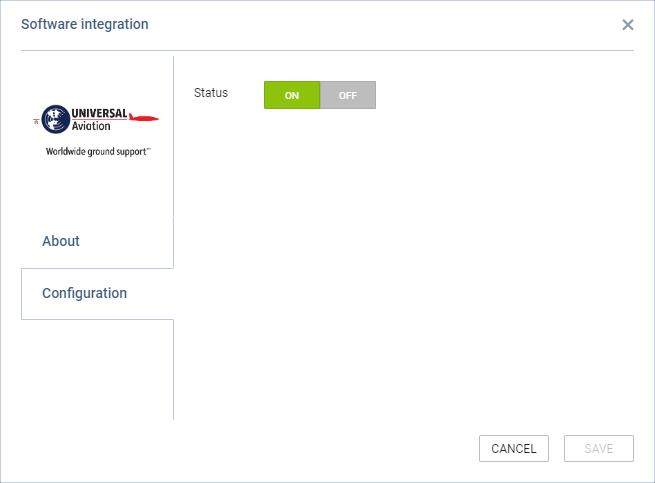

Once the credentials are saved in the User profile, go to Admin Panel > Add-ons > uvGO, and switch to ON in the configuration tab.

How it works

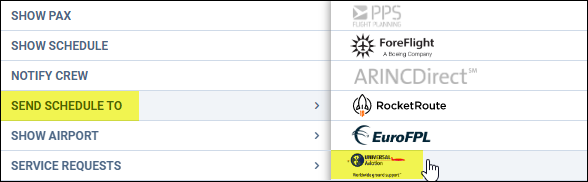

Once the integration is activated, the option to send flights to uvGO will become available in the OPS section, upon right-clicking on the flight > SEND SCHEDULE TO > uvGO:

The following information is included:

• Flight Number

• Aircraft registration or “TBA” if registration is not assigned

• Date of departure

• STD

• ADEP

• Date of arrival

• STA

• ADES

• Trip type

Veryon Tracking

Veryon Tracking (formerly FlightDocs) software brings you maintenance tracking like no other solution. Streamline workflows, increase efficiency and gain real-time insights into your entire fleet from anywhere, at any time.

How to integrate

Initially, you need to contact us via Customer Portal. Our IT will contact FlightDocs to register redirect_uri and set the url_configured flag which will enable switching the status to ON under the Configuration section. Once it is set to ON and saved, you will be redirected to the Veryon Tracking login site. After successful logging, Leon will receive a token activating the integration.

How it works

The integration offers automatic TAH, and TAC updates for all engines and APU.

Leon exports aircraft TAH & TAC (Total Aircraft Hours & Cycles) as well as APU hours (if updated in Journey Log in Leon).

To make the integration work properly you need to set up the airframe & engine details in section MX > Fleet. Click on a selected aircraft and enter a tab CAM. Here select Airframe “start date” and insert TAH & TAC values. You can do the same for engines. You can also add separate data for “APU” (Aircraft Power Unit), but it does not get automatically increased from the Journey Log entries (like engines) - this is a cumulative value, not hours per single flight.

Videcom

Videcom is an IATA-compliant Airline Reservation System providing Inventory Hosting, IATA E-ticketing, Internet Booking Engine, GDS Distribution, Codeshare and Interline connections. For more information please visit: Videcom Official Website.

The integration allows importing schedules from Videcom to Leon, in a few easy steps. Thus eliminating the need to enter the same schedule twice in both systems.

How to integrate

If you already are a Videcom client, you simply need to contact Ressupport@videcom.com in order to request a Token for integration with Leon Software. You can set up an integration with Videcom by switching it to Active. Once it’s activated insert integration details and press Save (see a screenshot on the right).

How to import flights

Once you are integrated you will see the action button located at the bottom bar of the OPS section which provides you with access to the Videcom import trigger.

The process of importing flights from Videcom to Leon is as follows:

1. Go to Add-ons section Videcom



2. Click on Videcom in order to open Import window.

3. Choose the date range and click the ‘IMPORT’ button. Leon will search for the flights and if there are any scheduled in Videcom, they will be listed in the ‘Import Window’. After clicking on the ‘IMPORT’ button Leon will display flights divided into 3 sections: New - flights just imported for the first time; Updated - any updates made in Videcom or Leon to previously downloaded flight; Skipped - flights ignored during import due to a number of reasons such as: missing IATA code or number, unrecognized airport, etc.

4. Relevant flights will display in Leon upon refreshing the OPS page view.

If the schedule changes are made in Leon, Videcom will overwrite it upon the next import.

World Kinect Corporation

The integration with World Kinect Corporation (formerly known as World Fuel Services) allows to pull fuel prices from the WKC using the API, with no need to upload CSV/XLS files with fuel prices to Leon.

It is possible to add multiple accounts per operator and define them per specific tails.

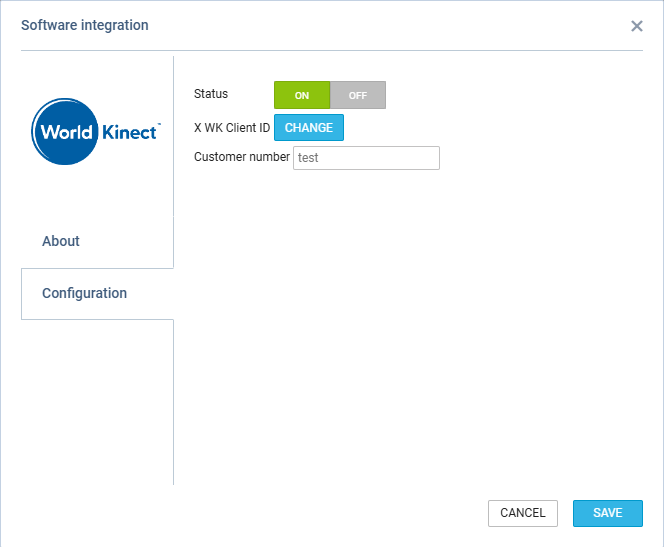

To enable the integration, you need to provide:

• Account name

• Client ID

• Supported aircraft list

Once the integration is enabled:

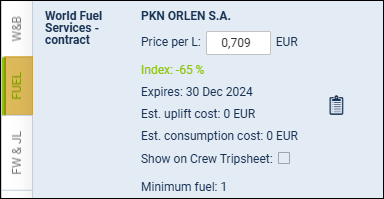

• The price will appear with supplier name World Fuel Services - contract

• ‘WFS’ fuel upload will be removed from the OPS > ‘Fuel Prices’ section

• ‘WFS’ fuel prices will appear in the OPS > ‘Fuel Prices’ section if applicable to searched airport

• Fuel prices from this source will be shown in OPS -> Fuel, when the



  button is clicked

Zapier

Zapier is a powerful workflow automation tool. In Zapier, you can create Zaps connecting Leon to many other applications.

The application currently supports:

1. Trigger events (based on polling):

   • Flight Created - triggers when a new flight is created.

   • Schedule Changed - triggers when a flight schedule is changed.

   • Crew Changed - triggers when a crew is changed on a flight.

   • PAX List Changed - triggers when a PAX list is changed on a flight.

2. Action events (for example, you can run them at specific intervals):

   • Find Empty Legs search - finds and returns empty legs (ferry flights) for the selected timeframe (since ‘now’).

   • Flight List search - finds and returns flights for a specified filter.

Due to Zapier limitations, action events (searches) return the output data as a pre-formatted string containing the details of all flights found in the search action.

Integrations created by third-party providers

There are also integrations created by third-party providers.

These types of integrations are programmed and activated by third-party integrators.

The type of data provided to the third-party integrator is listed in the Permissions subsection of the ‘Configuration’ tab.

If some of the permissions are unnecessary for the external application’s performance, the Operator can disconnect the application and contact the integration provider.

How Does the Integration Work?

Third-party providers can create integrations with Leon using the OAuth 2.0 Authorization Code Grant flow. From a Leon user’s perspective, the process looks like this:

1. Request the Connection

   • The operator initiates the process by contacting the third-party provider and requesting a connection to Leon.

   • Ideally, the third-party application should offer a button or setting within its user or admin interface to start the integration process.

2. Authorization Request

   • The third-party provider supplies a special URL. When the operator’s admin clicks this link, they are redirected to Leon’s login page. This page displays:

     1. Name of the third-party application requesting access

     2. List of Leon resources the app wants to access

3. Review & Confirm

   • Carefully review the application name and requested resources.

   • If you’re unsure about the access scope or purpose, contact the third-party provider for clarification.

   • For additional support, please contact us via the Customer Portal.

4. Authenticate & Authorize

   • If everything looks correct, enter your Leon credentials and click Confirm.

   • Important: In most cases, only users with System Admin privileges in Leon can authorize third-party apps (except for personal apps like logbooks).

5. Integration Complete

   • After confirmation, you will be redirected back to the third-party application.

   • The app should now be successfully connected to Leon.

Flight support service providers and suppliers

Leon is integrated with multiple suppliers, allowing its users to make requests and receive status updates (including confirmations) along with all necessary details. It also facilitates message exchanges between the Operator and Supplier.

The communication is conducted via the API, which means no email communication is required in such cases.

To enable the integration, please get in touch with the selected supplier. They will guide you through the process.

In case of any issues, please contact us via the Customer Portal.

The integrations work as described in the Checklist section of this manual.

There is a simple configuration available, where you can select:

• The aircraft available for this integration

• Default services - the services which will be requested with this supplier on all new flights by default

• Share PAX data on flight by default - it will make the “Share PAX data” checkbox ticked by default on new requests, making the PAX details available to the suppliers.

• Share aircraft documents on flight - it will allow the supplier to pull the aircraft documents from Leon on all the flights requested with them.

The list of suppliers currently available via the API connection includes:

• Apogee Aviation Services

• Avior

• Click Aviation Network

• Compass by Hadid

• Euro Jet

• FCG OPS

• Jet Business Solutions

• Jetex (GTM)

• MoonJet Flight Support

• MyFlight Connect

• Prevosti airTrack

• UAS International Trip Support

ARC

ARC is a modular SMS solution provided by Aviation Manuals. It is available online and via an app. It can be used for submitting, storing, and analyzing your SMS data and performing flight risk analysis. It allows you to manage your manuals, department files, communications, and overall aviation operations.

How it works

Leon automatically feeds ARC with flight data for smooth and instant flight risk assessment that can be performed in ARC.

For more information or to activate the integration please visit: www.aviationmanuals.com or contact info@aviationmanuals.com

ATOM

ATOM is a platform provided by FCG Holding.

ATOM is a unique IT platform produced for FBO and OCC needs. It is incorporating the functionalities of ERP (enterprise resource planning), CRM (customer relationship management), flight management, reporting, and business analytics. The system allows the incorporation of the work of all the holding departments, partners, and customers.

More information about ATOM can be found here.

The integration is beneficial to the Clients who are FCG’s customers, mainly FBOs and Flight Supports, for whom FCG services the flights (mainly different kinds of permits).

How to integrate

In order to integrate, you need to be an FCG customer.

Contact FCG at ops@fcg.aero and they will perform the integration for you. FCG will need the API Key which can be created here. Additionally, provide FCG with the source URL, if the specific one is available.

How it works

Once the integration is active, the following data is requested from Leon: Flight Plan, slot, fuel, handling, and permissions. the data is requested for the next 30 days.

ATOM is able to send back to Leon the flight data (CTOT, ATA, and ATD) as well as service statuses.

Azzera CELESTE

Azzera CELESTE Physical SAF Inventory Management module is specifically designed to support the upcoming ReFuel EU mandate. This module allows operators to efficiently manage and track their SAF uplifts and compile necessary reports. With all SAF data stored in a single module, users can monitor their use of SAF on an interactive map, tracking where SAF is purchased, how much is uplifted, and which routes were flown.

The integration of Leon Software with CELESTE offers a powerful tool for aircraft operators to manage their ReFuel reporting with planned fuel and SAF usage. Allowing operators to stay ahead in their sustainability efforts, ensuring they meet regulatory demands while contributing to a low-carbon future in aviation.

How it works

CELESTE enables operators to offer SAF credits and high-quality carbon credits to their clients without holding inventory. The SAF credits are issued using the Sustainable Aviation Buyers Alliance (SABA) methodology guidelines. On the marketplace, users can compare carbon credit projects rated with the Azzera Impact Score. CELESTE uniquely combines emissions monitoring and mitigation in a single platform, streamlining operators’ sustainability efforts and providing their clients with impact driven mitigation of their carbon footprint.

With CELESTE, operators can manage and mitigate emissions of their entire fleet by aircraft tail. Essential flight data, including aircraft type, fuel consumption, departure and arrival points, and flight distances, are automatically transferred from Leon Software to CELESTE via API, ensuring precise calculations in line with ETS schemes and CORSIA standards.

Thanks to the quick API connections Flight Dispatchers that are working on Leon Software have quick possibility to transfer their data from sections like Journey log in Leon’s checklist to CELESTE calculate the compensation.

How to integrate

In order to integrate with Azzera CELESTE, please contact Azzera’s team at info@azzera.com

eTechLog8

eTechLog8 developed by Conduce, is a mobile solution that replaces the aircraft paper technical log with a fully digital alternative.

How it works

This integration automates the receiving of flight schedules and their changes (SSIM/ASM/SSM) from Leon Software into eTechLog8.

FlyEasy Software

FlyEasy Software is a map-based business aviation search platform allowing users to quickly search and request trip pricing from any aircraft operator in the world.

More information about FlyEasy software can be found here

How it works

The integration allows importing empty legs from Leon to FlyEasy Software. The process of data integration is fully automated, with an update on empty legs running between Leon and FlyEasy platforms every 1 hour.

How to integrate

In order to integrate with FlyEasy Software you need to go to ‘Settings’ > ‘API Keys’ section, generate API key with ‘Aircraft Availability’ from the ‘Resources’ list and forward this key to your FlyEasy Software manager or Tech Support.

More information about generating API keys can be found here.

IFS

Integration with IFS allows automatic logging of flight figures into the post-flight database (Flight Watch and Journey Log) in Leon.

How to integrate

In order to integrate, you need to create an ‘IFS user’ in your account in Leon and send the user details to your point of contact at IFS.

Once IFS has the details, they will be able to integrate their database with Leon.

How it works

Once the integration is completed, IFS sends post-flight data into ‘FW&JL’ in Leon.

The following data is sent: unique ID number, Flight number, date, aircraft registration, ADEP, ADES, BLOFF, T/O, LNDG, BLON, No of PAX, Uplift, Block Fuel, Remaining Fuel, Delay Code, Delay Time, Pilot Flying, Number of landings

For more information and technical guidance visit the IFS website: https://www.ifs.com/en

iSAR

iSAR

iSAR manages operational, financial and reporting processes. It’s intuitive and requires very little training.

Specifically built for SAR and HEMS operations, iSAR has tracked millions of flying, duty and rescue hours and is depended upon by stakeholders at Government, Corporate and Operations levels 24 hours a day across over 100 locations globally.

More information about iSAR can be found here

How to integrate

In order to integrate, you need to create an ‘API Key’ in Leon and forward it to your point of contact at ‘iSAR’. More information about creating an ‘API Key’ can be found here.

‘iSAR’ will use this ‘API Key’ to upload the flights from Leon to their application.

How it works

Flights created in iSAR will be automatically sent out to Leon. Changes in flights (i.e. schedule) will also update the flight in Leon, including cancellation of the flight. iSAR will also send OPS notes to Leon.

IQSMS

IQSMS is an integrated, web-based Safety, Quality and Risk Management solution for the aviation, maritime and offshore sectors which has been developed by aviation industry experts and experienced IT professionals. Due to the modular set-up of the software, customers can easily assemble their individual solutions by deciding which of the provided modules supports their company most efficiently.

Essentially, what the integration does, is import from LEON crew schedule information into the IQSMS Reporting Module. Each crew member gets listed the upcoming and past flights. When selecting a flight, IQSM automatically pre-populates all available data in the reporting forms used by customers for safety reporting. This helps on the one side the reports, that they have to fill in less information when filing the safety reports and makes reporting therefore much more effective but on the other side the safety departments receive validated information regarding the flight and must not verify this information anymore.

You can find more info about IQSMS at http://asqs.net/

MRX System

MRX to Leon is a service that automatically fills Leon’s journeyLogs with data taken from BlueEye’s TechLogs when it finds a matching flight. Thanks to this service, you don’t need to write flight information twice in two different softwares anymore.

How does it work?

The service runs every 2 hours and takes only the techlogs of the past 10 days that were not yet sent to Leon. With this data, it will check in Leon for matching flights according to:

• • Aircraft’s registration,

• • Departure airport

• • Destination airports

• • Take-off time

• • Landing time

Once it finds the right flight in Leon, it will update the journey log with data taken from BlueEye’s techLog.

What data is sent?

The service takes data from BlueEye and converts it to match Leon’s needs. It sends the following data: * These fields are optional and need the “max fuel” value of the aircrafts to be filled-in correctly. Please let us know if you want this data to be sent.

How to integrate? Contact MRX Systems’ Support Team (support@mrxsys.com) to enable the Blue EYE to Leon connection in your account.

PAXFILES

Paxfiles is a software that lets you scan passengers, crew members, and even companies or jets for their presence on all of the major sanctions lists such as UN, EU, USA, UK, Canada, Australia, FBI, and Interpol.

Paxfiles integration is available to all the Clients without having to activate it in the ‘Add-ons’ section.

Currently, the functionality can only be used in the OPS Checklist.

How it works

In order to check if the PAX is on the list of sanctions, the below steps need to be performed:

• make sure that a user has the privileges to at least see the PAX list (‘OPS-PAX’ privilege set to ‘VIEW/EDIT’)

• activate the SANCTIONS LIST element of the OPS Checklist. This is an item per trip

• add PAX to the flights

• go to OPS Checklist > ‘PAX’ subsection

• Click on the ‘CHECK’ button available by the ‘SANCTIONS LIST’ item

• the ‘Sanctions list’ pop-up window will appear and the search will be performed (as per the screen on the right). A person on a sanction list should appear in the red section of the screen

• press the ‘APPLY’ button. If at least one passenger on the trip is on a sanctions list, the ‘SANCTIONS LIST’ item will change the status to ‘REJECTED’. Otherwise, the status will change to ‘OK’

Any change of the PAX list will switch the ‘SANCTIONS LIST’ status to ‘?’.

PNRGO

PnrGo is a one-stop software solution that automates the data compliance process for:

• API (including interactive API)

• PNR

• international sanctions screening

• various travel authorization programs (such as TSA Secure Flight, Canadian iAPI/AirExit/PPP, UK UPT, or EES and ETIAS)

• PNL (charter operators).

How it works

Once activated, PnrGo continuously monitors your flight schedules and movements in Leon Software. All required flight, pax and crew data is pulled directly from your Leon account and processed automatically to ensure compliance with the applicable regulations. This may involve e.g. a data transfer to a relevant authority, or sanctions screening of your passengers, crew, and aircraft. Every change to flight, crew, or passenger data – including movements – is automatically propagated to PnrGo in real time.

The status updates from PnrGo are visible within your Leon account, and you can find them through additional “items” on the OPS checklist panel – each item will appear automatically once the data is synchronized. Additionally, email notifications are sent to ensure you won’t miss any important information.

The following items in the Leon checklist are automatically updated based on PnrGo statuses:

• “PNR GO” – displays the current status of each planned submission, allowing users to track whether PNR or API messages have been successfully sent and processed.

• “PNRGO SANCTION LIST” – shows the result of the vetting process for each passenger and crew member, indicating whether any individuals appear on international sanction lists.

• “INTERACTIVE API” – reflects the outcome of Travel Authorization checks for countries that require pre-approval prior to departure or arrival. This ensures compliance with entry and exit requirements specific to each destination.

• “EAPIS” – confirms the submission of Electronic Advance Passenger Information (eAPI) and provides the corresponding confirmation code received from the border authorities.

How to integrate

To activate any PnrGo services, you must first be a PnrGo customer. Please contact the PnrGo team to begin the onboarding process.

You will receive an email with an activation link to connect your PnrGo account to Leon Software. This link will take you to your Leon account, where you need to consent to PnrGo accessing specific data within Leon Software. Your consent is required to generate the API Key. To grant consent, you need to log in to the account with the administrator's credentials [Admin - system].

After completing the task, the integration is established. From now on, your Leon Software account is integrated with your PnrGo account.

More information

During the onboarding process, your team will receive a training session and a Quick Guide document. These will outline the key rules governing the integration between PnrGo and Leon, ensuring that the PnrGo system functions automatically in the background of your operations.

For further details, please visit the PnrGo website, or arrange a meeting with their team.

Roster Buster

It is now possible to export Leon rosters to the RosterBuster. You can now download, view, and share your Leon roster with your friends!

Currently supporting 411+ airlines, RosterBuster allows not only viewing and sharing of your roster but also exporting it to external logbooks as well as synchronizing with various online calendars.

How does it work?

We have now enabled a data transfer from Leon to RosterBuster, which allows RosterBuster’s users to quickly download their own rosters into the application.

For technical guidance contact, RosterBuster Support on support@rosterbuster.com and check out the RB website for additional information www.rosterbuster.com

QUOREM

Quorem is a platform developed to give proactive sales teams a faster and more informed way to build optimized flight programs. The partnership with Quorem introduces an integration that enhances sales processes for operators using Leon, analyzing the flight schedule and tracking the best of the available opportunities. Quorem’s ML-powered data engine will look up the aggregated data for the most efficient way to optimize the sales pipeline, fine-tuning the available bookings with empty legs availability, as well as offering extensive automation for workflows and alerts.

Curious about how Quorem could help your sales teams close better bookings? Check out this link or book a demo here
