Ops Defining Iata Service Type Code For Sending Asm Or Ssm Messages Introduced

IATA SERVICE TYPE


The list of IATA Service types


It is possible to include IATA Service Type when sending ASM or SSIM messages from Leon.

The 1st step is to enable this functionality by marking a checkbox enable.png in the Admin panel, section ‘Flight Editing’. In the same section it’s possible to define a default IATA Service type default_setup.png

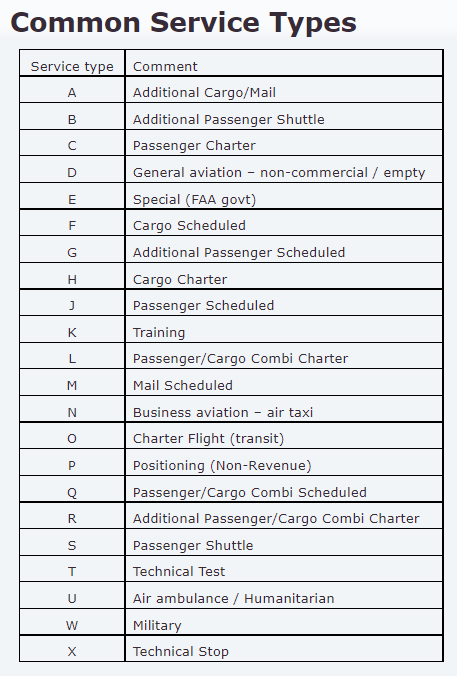

All available IATA Service types are explained in the screenshot on the right.

When enabled, the IATA Service type will show for each flight in ‘OPS’ panel, tab ‘FLIGHT’- it can be manually changed if necessary.


It also shows in the panel SCHED (when creating or modyfing schedule).

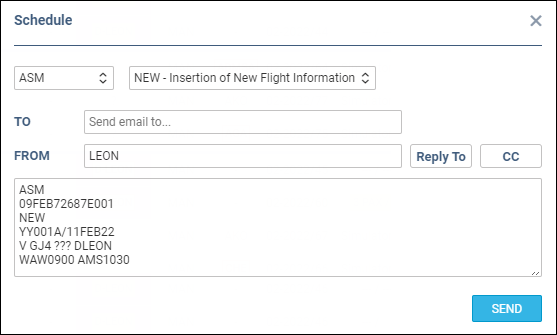

The main section where IATA Service type will be especially useful is sending ASM message window from the SHOW SCHEDULE panel.
